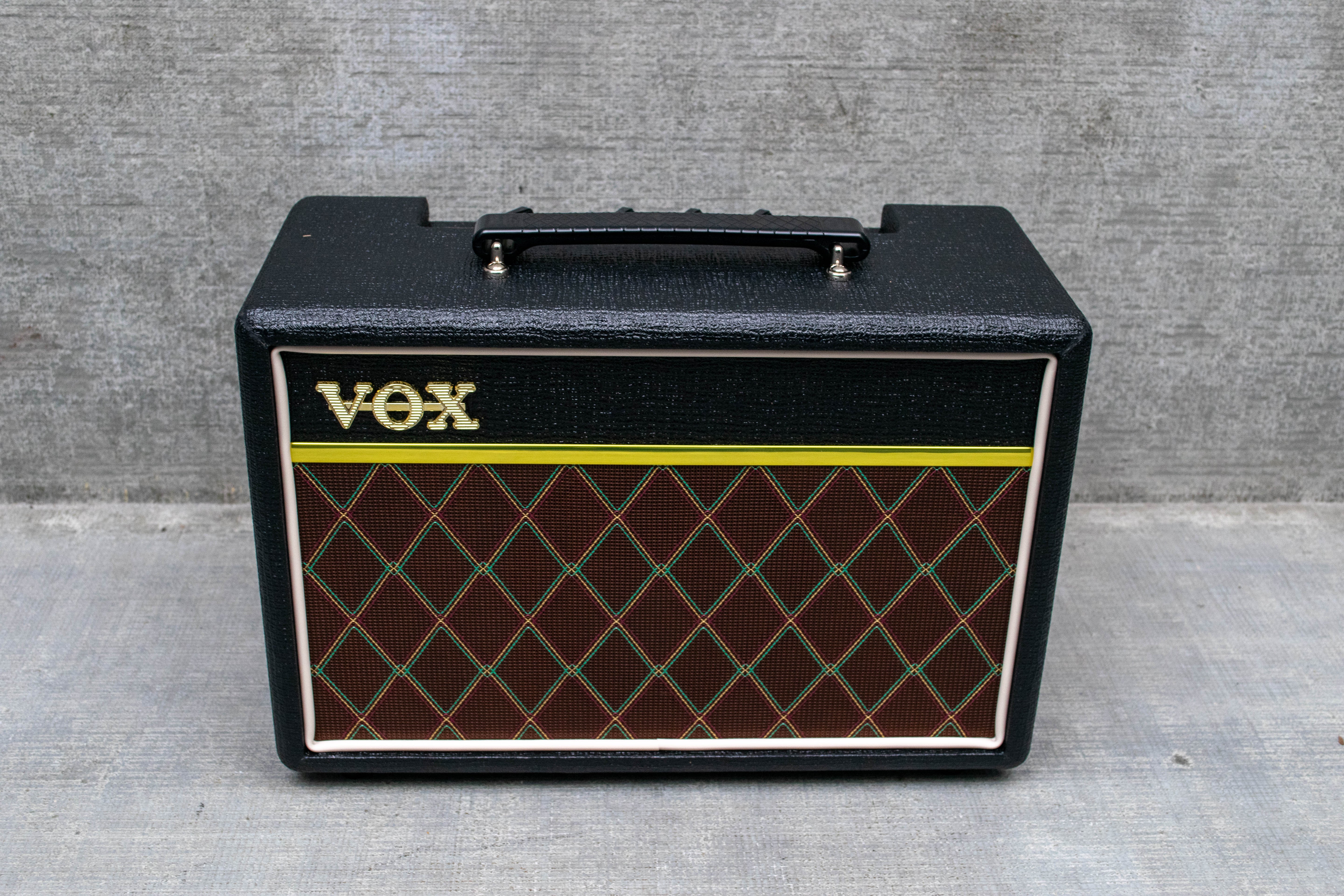

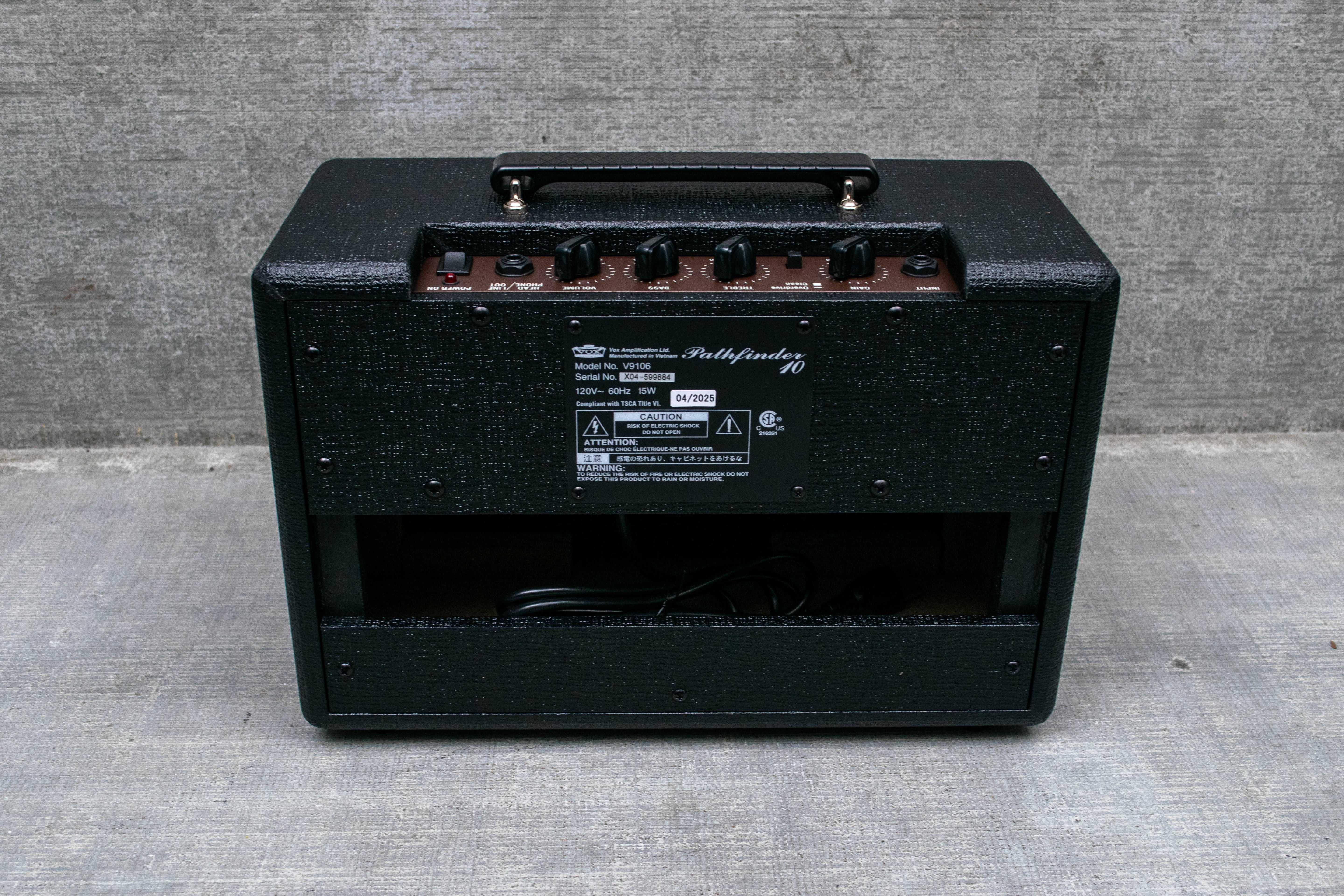

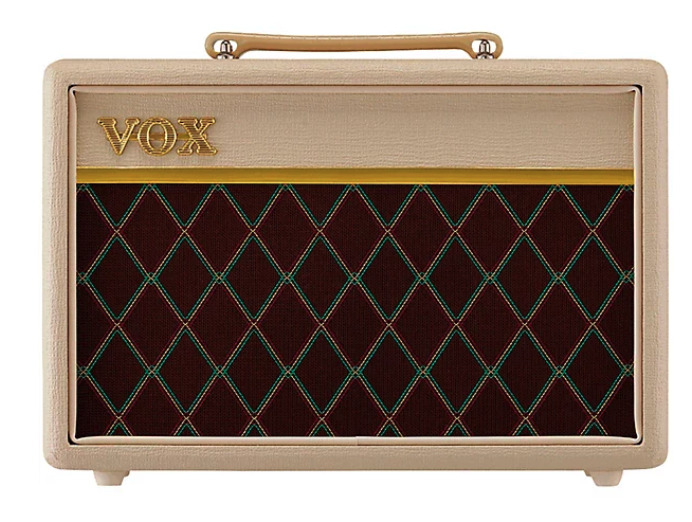

The eye-catching looks of these 10-watt combos are also classic VOX and include basket-weave, leather-look, our distinctive diamond grille cloth and, of course, chicken head knobs! Small but all-important details such as the white piping have also been faithfully reproduced, perfectly recapturing the legendary look of VOX. The all-analog, solid-state design is responsive and chimey, just like a VOX should be.
The Custom Series AC10 - A Classic, Rediscovered

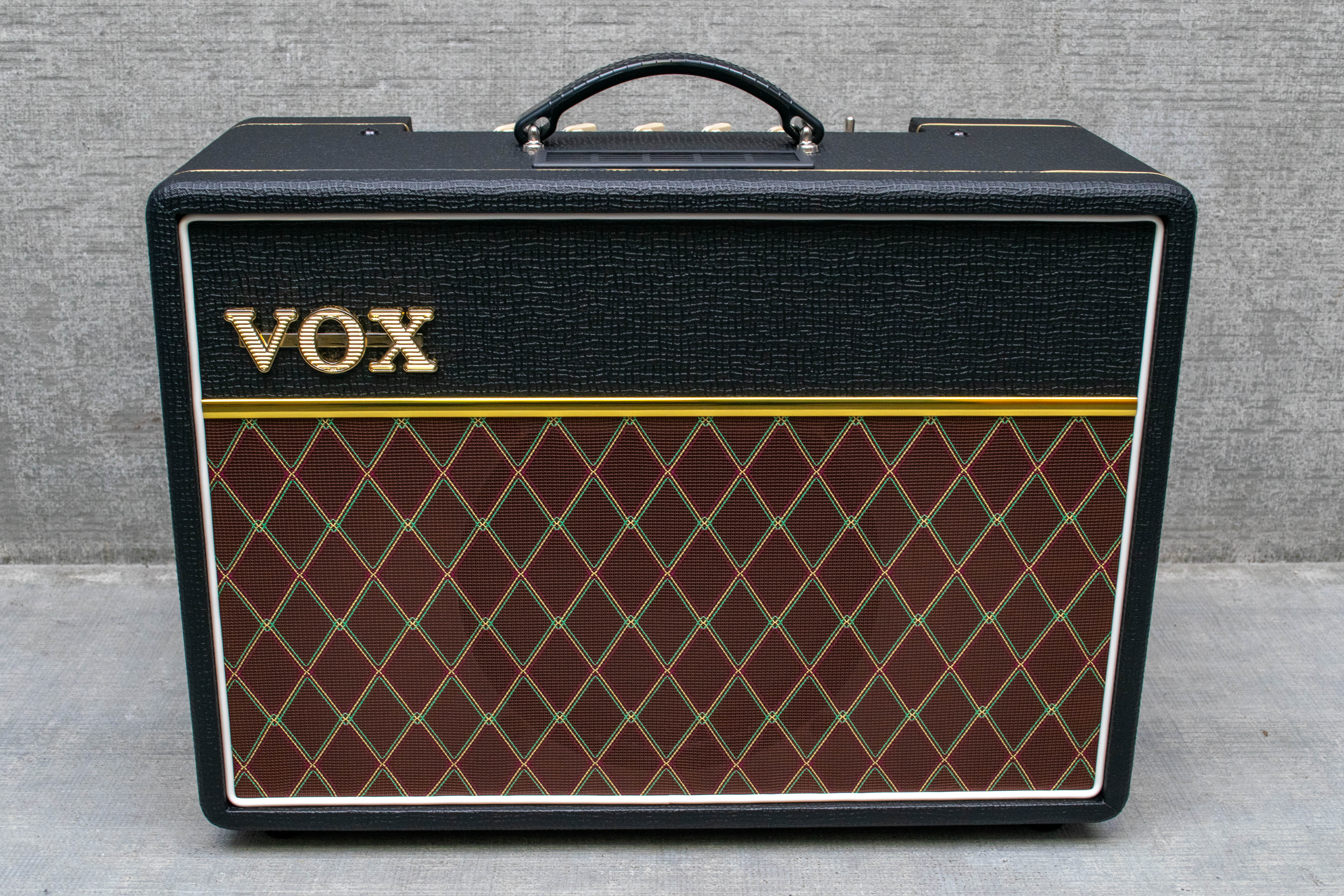

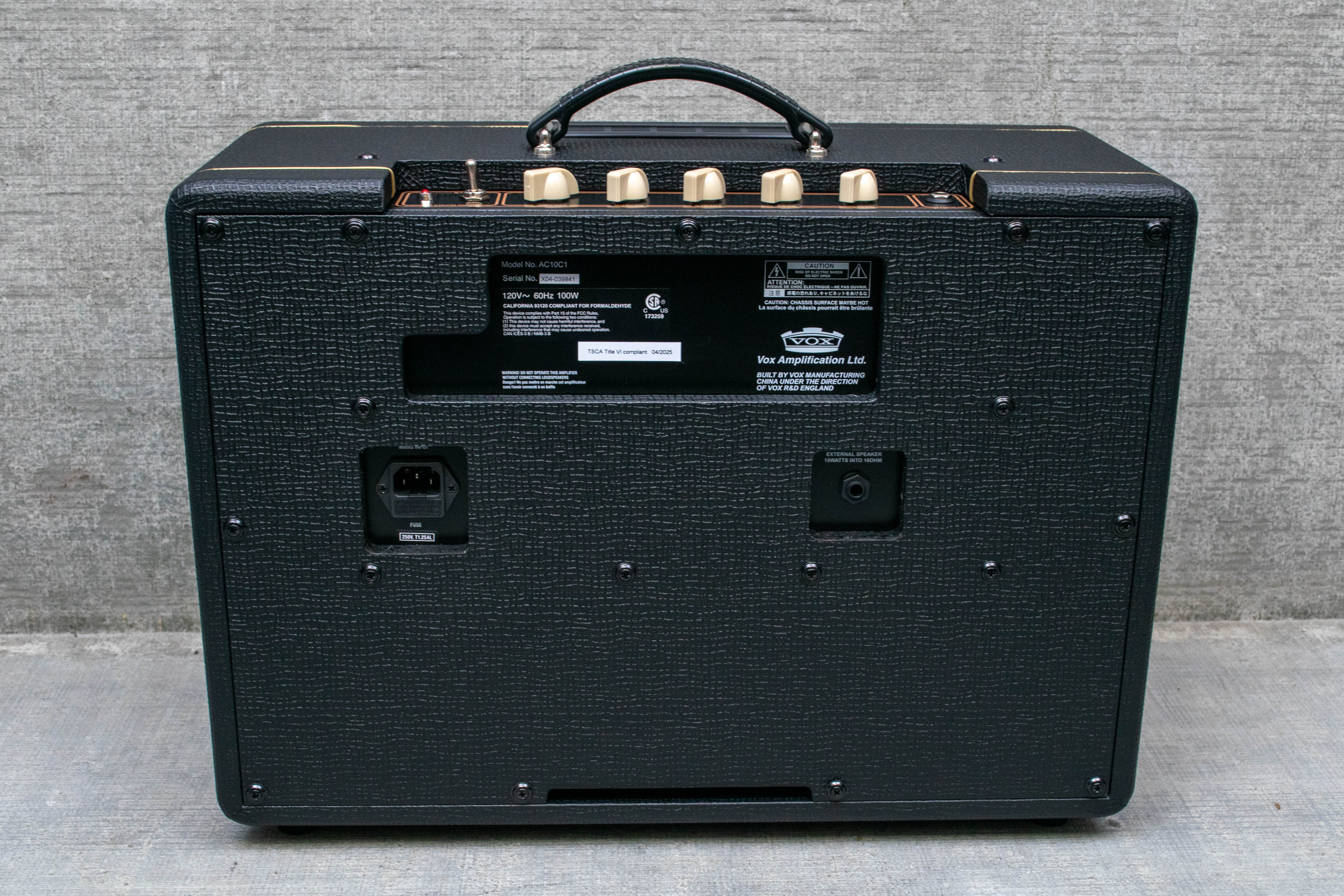

The new AC10C1 is a 10 watt tube amplifier that joins VOX's flagship lineup of tube amps, the Custom Series. More portable than the AC15 and more powerful than the AC4, the AC10C1 provides an array of classic VOX tones and comes equipped with studio-quality reverb and a master volume.
The AC10 was one of the first amplifiers to bear the VOX name and has long been adored for his ability to achieve rich, articulate tube tone at very manageable volumes. For this reason, the AC10 has become a highly coveted piece of VOX history since it's discontinuation in 1965. Now, nearly 50 years later, VOX is proud to introduce the AC10C1, a modern take on this classic design. More portable than the AC15 and more powerful than the AC4, the AC10C1 features the classic Top Boost tone circuit that provides an array of classic and modern tones. Now equipped with reverb and a master volume, the AC10C1 is the perfect companion for the home, studio or stage.
GAIN, BASS, TREBLE, REVERB, VOLUME
2 × 12AX7, 2 × EL84
1 × 10-inch Celestion VX10
EXTERNAL SPEAKER jack
Dimensions (W x D x H):
520 x 210 x 410 mm/20.47”x8.27”x16.14”
|AC30 Custom Head|
The AC30CH utilizes 12AX7 tubes in the preamp and EL84 tubes in the power amp. The Normal and Top Boost channels each have a dedicated volume control, and the Top Boost channel also provides Treble and Bass tone controls. In the Master section, there's the distinctive VOX Tone Cut and Master Volume that allow you to obtain a variety of sounds ranging from the extraordinarily sparkling VOX clean tone to a powerful, raw overdrive. The familiar VOX Tremolo and Spring Reverb from the Custom Series are also found in the new AC30CH.
The compact and lightweight VX series is joined by a new 50W model, specialized for keyboard and featuring Nutube, the new vacuum tube. With a coaxial speaker that outputs clear sound even to the high-frequency range, and a bass reflex structure that reproduces rich low-frequency sound with ample power, this amp delivers high-quality sound from a compact and lightweight unit. The three-channel design provides an independent volume control for each channel, and CH3 also supports mic input. This amp can also function as a simple and easily transportable PA system. A full complement of input/output jacks is also provided, including an AUX IN jack, headphone jack, and a LINE OUT jack for connection to a PA system. This amp is also ideal for on-stage use as a monitor amp.
Revolutionarily lightweight and compact, with high 50W output
In spite of its high 50W of output power, the lightweight 4.1 kg (9lbs) body and compact design mean that transportation is easy. The one-piece ABS chassis ensures high durability and great sound quality while keeping the weight light.
The warm vacuum tube sound of Nutube
By using Nutube, the new vacuum tube, this amp achieves an output power of 50W while being compact, lightweight, and power-efficient. In addition to enjoying the rich overtones and sonic power of vacuum tubes, you'll also appreciate the clear tone with compression that particularly enhances piano and electric piano sounds.
Coaxial speaker provides clear output extending to the high-frequency range
The coaxial two-way speaker features a powerful eight-inch speaker plus tweeter. From a bountiful low range to clear highs, the output is transparent-sounding while ensuring a sense of volume. Another major advantage is the excellent sense of positioning that you receive from the VX50’s coaxial speaker. Even the sparkling highs of a piano or synthesizer will be expressed in every detail.
Bass reflex structure provides ample output power and rich low-frequency reproduction
A proprietary, optimized bass reflex structure is used, with every detail adjusted specifically for the response of keyboard instruments. The chassis uses ABS polymer for its light weight, durability, and excellent acoustic properties. This allows for a 3D design that would be impossible with wooden material and achieves the ideal cabinet resonance. In addition, wood is used for the baffle, achieving the optimal resonance for a keyboard amp. While the chassis is polymer, a distinctive sense of high quality is emanated by the stony-finish exterior and a white/black color scheme based on a keyboard motif.
Three-band master EQ allows flexible sound control
The three-band master EQ with BASS, MIDDLE, and TREBLE controls is common to the three channels. It provides basic and flexible control that you need to shape your sound.
Three-channel design meets the demands of any scene.
A rich array of input/output jacks
This unit's three-channel design meets the needs of any scene: three keyboards, two keyboards and a mic, or a stereo keyboard output plus a mic. It can also act as a simple PA system. In addition to a master volume, independent volume controls are also provided for each channel 1–3. Furthermore, each channel also has a CLIP indicator to prevent distortion caused by excessive volume. CH3 is also equipped with a PHASE switch. When a mic is connected to CH3, this switch can be used to correct phase interference with instruments that are connected to CH1 and CH2 or to reduce low-frequency acoustic feedback. A full complement of input/output jacks are also provided, including an AUX IN jack for connecting your audio player or rhythm machine to enjoy jam sessions, a LINE OUT jack that can be used for connection to a PA system, and a headphone jack that's ideal for practicing at home.
INPUT CH1: 1/4” phone jack (unbalanced)
INPUT CH2: 1/4” phone jack (unbalanced)
INPUT CH3: 1/4” phone jack (unbalanced) mic/line switchable
AUX IN: 1/8” stereo mini phone jack
LINE OUT: 1/4” phone jack (unbalanced)
Headphone: 1/8” stereo mini phone jack
Valve: Nutube 6P1
Output power: Maximum approx. 50W RMS
Speaker: VOX Original 8” speaker with tweeter (2-way coaxial
Power supply: AC adapter (DC 19V)
Current consumption: 3.42A
Dimensions (W x D x H): 354 mm × 208mm × 313mm / 13.94" × 8.19" × 12.32"
Weight: 4.1 kg / 9.04 lbs.
Included items: AC adapter (DC 19V), power cord

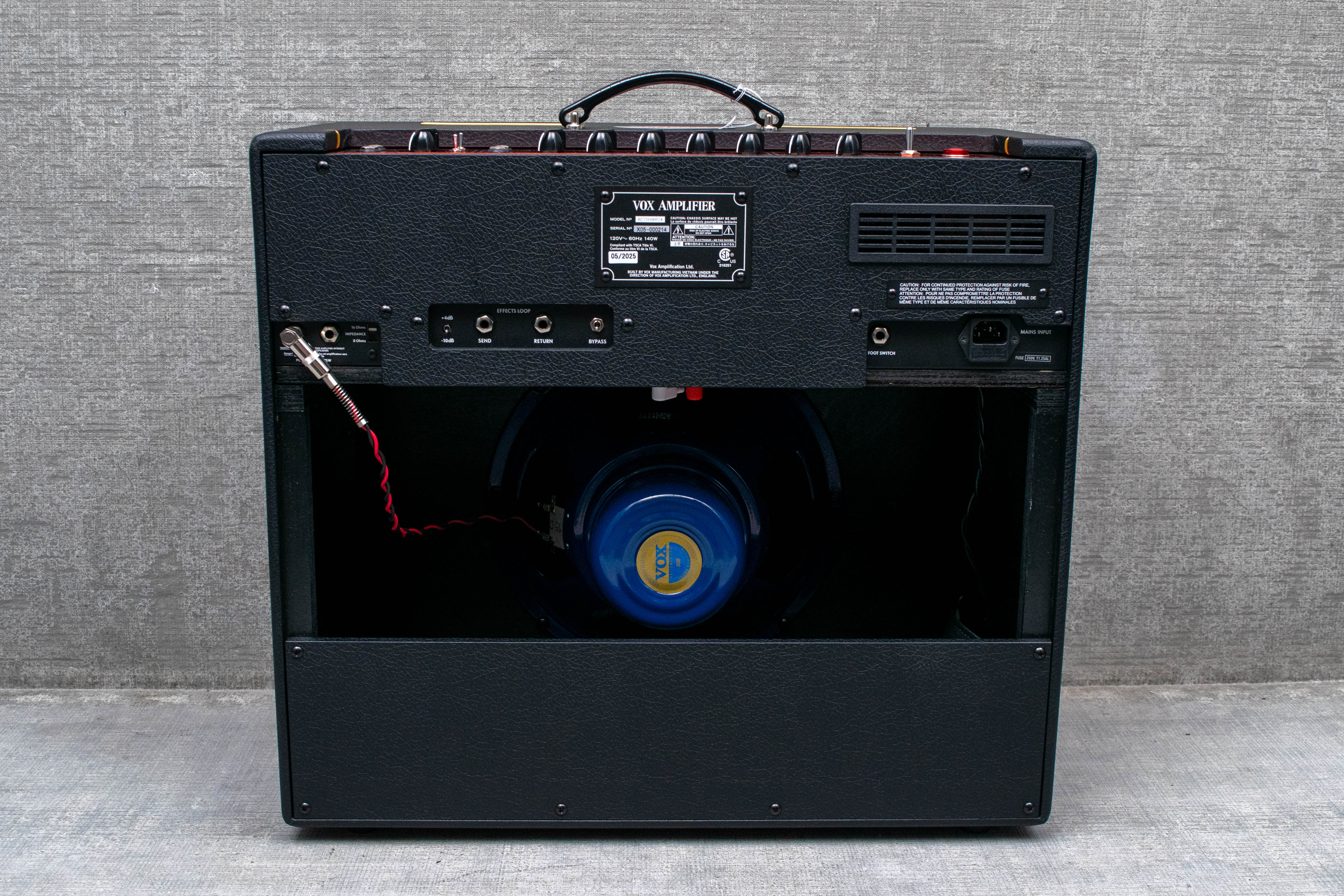

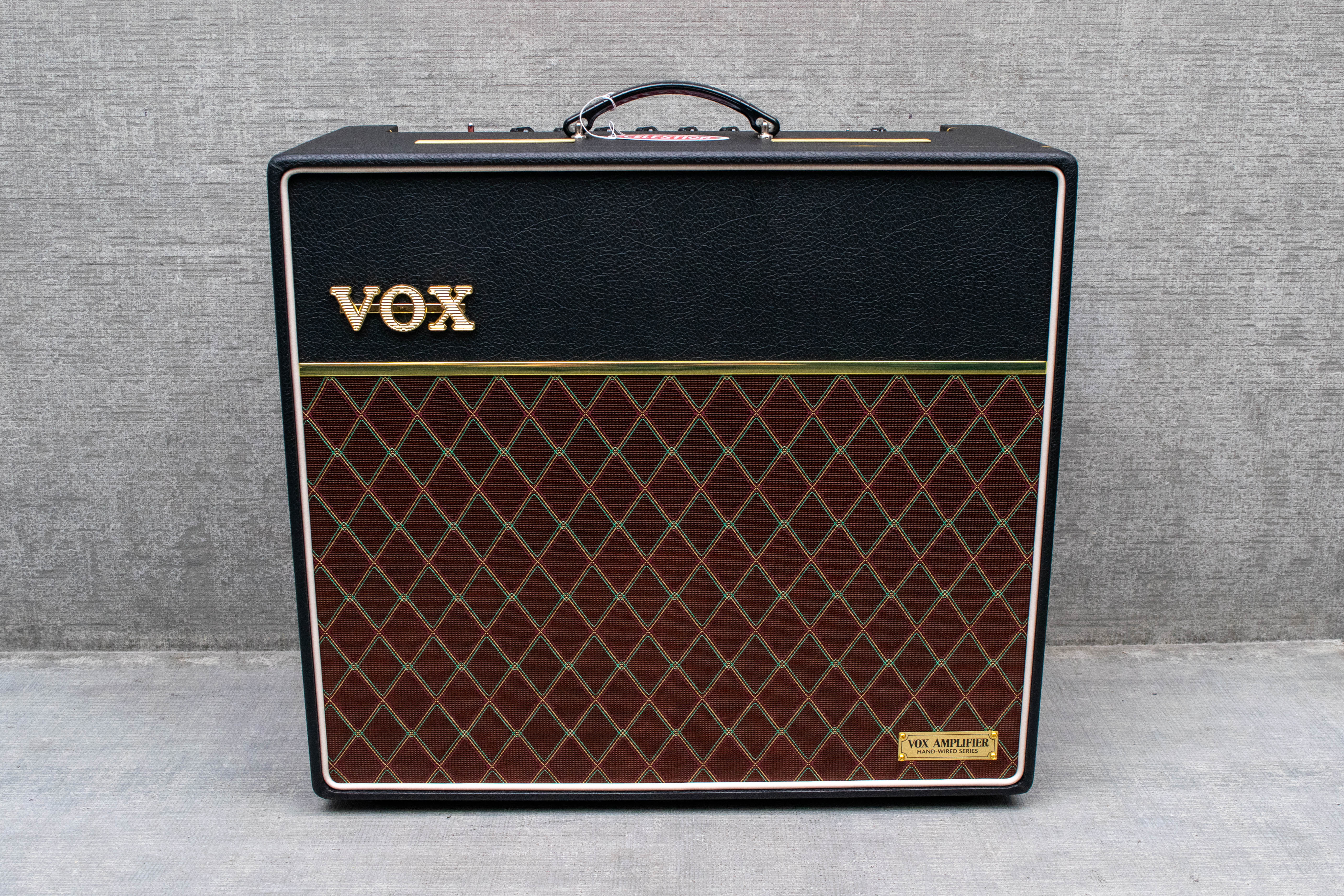

There may never have been an amp boasting such a lofty and pure sound in the entire history of VOX. The VOX Hand-Wired Series relies on the painstaking technique of turret board hand-wiring – a method requiring a high level of skill and craftsmanship – is used, resulting in wiring that’s beautiful in its artistry, ensuring an efficient signal path with minimal loss and no restriction in amplitude. In the Hand-Wired Series, tubes, transformers, speakers, chassis, and custom parts all join together in an ideal state to deliver the richest and most powerful sonic experience – the ultimate amp. Not bound by tradition, the VOX Hand-Wired Series also provides a variety of new functions that keep pace with the needs of today’s artists. Offering a rich variety of tonal shadings and a broad model lineup, the enormous potential of the VOX Hand-Wired Series will reveal itself in any musical scenario.
15 Watts RMS
8 or 16 Ohms
1 x 12″ Celestion G12M Greenback
1 x Normal High Input Jack
1 x Normal Low Input Jack
1 x Top Boost High Input Jack
1 x Top Boost Low Input Jack
1 x External Speaker Jack
1 x Extension Speaker Jack
Master Volume, Master Tone Cut, Normal Volume, Top Boost Volume, Top Boost Bass, Top Boost Treble
3 x Ecc83|12AX7 (preamp)
2 x EL84 (power amp)
1 x EZ81 (rectifier)
610 x 260 x 550 mm | 24.02 x 10.24 x 21.65 inches
22.2 kg | 48.9 lbs

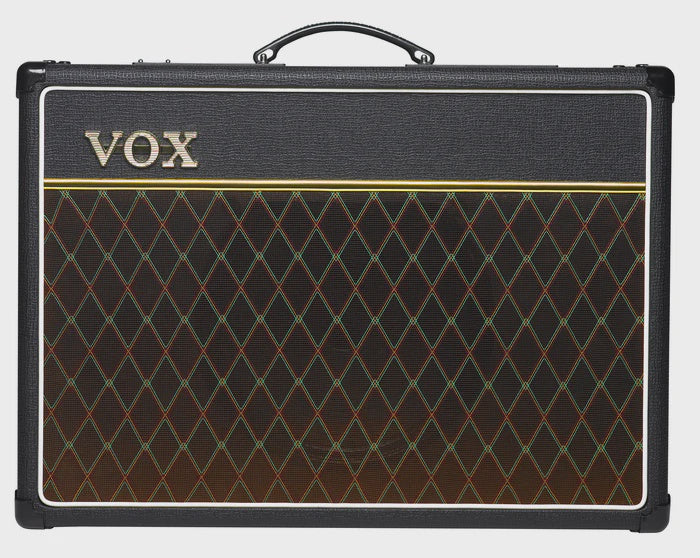

The VOX AC15 is the amp that started it all. Boasting both a Normal and Top Boost channel, the AC15 Custom is an all-tube, EL84 driven workhorse that delivers 15 watts of authentic British tone into your choice of a genuine Celestion Greenback or Alnico Blue speaker. The AC15 Custom also offers footswitchable spring reverb and classic VOX tremolo to enhance the already impressive sound. Adored by the biggest names in music for nearly 60 years, the VOX AC15 Custom carries on the tradition that began in 1958 and offers guitarists the unmistakable sound of VOX, with all the refinements of a modern amplifier.
AC15C1: 15 Watts, Single 12" Celestion G12M Greenback Speaker
MV50 Boutique - 50 Watt Mini Head
Designed with an emphasis on analog, VOX's MV50 combines classic amplifier design with new and innovative production techniques to produce a miniature amplifier with truly monstrous sound. Boasting an incredible 50 watts of power, this one-pound package serves up serious guitar tone that distills the sound of legendary boutique amps coveted by pro guitarists. It covers the range from warm and clean to cutting overdrive that's ideal for expressive leads, and responds naturally to the subtle nuances of your playing.
The MV50 is equipped an all-analog pre-amp circuit that features Nutube, a revolutionary new vacuum tube that produces authentic tube tone at a fraction of the size. By taking advantage of this incredible new technology, VOX's engineers were able to design a true, miniature tube amplifier. Beyond the inclusion of Nutube, the pre-amp circuit in the MV50 features a staggering number of analog components that effectively reproduce the dynamic character of a traditional tube amp. Paired with this innovative pre-amp circuit is a reliable and efficient Class D power amp that has been specifically designed for the MV50. From warm, natural cleans to dynamic overdrives, this power amp has been engineered to respond to the nuances of your guitar and, of course, your technique.
