Darkglass Electronics Element Headphone Amp & Cab Sim
$279.99
ELEMENT
Headphone amp · Cabsim
One comprehensive device, that out of the box offers a bank of 5 cabinet simulations, and the ability to change them through the Darkglass Suite, Bluetooth technology to listen to backing tracks while playing, rehearsing, or studying. Two headphone outputs to allow interaction among musicians. XLR output to connect the Element to your audio interface or PA system. With a uniquely innovative approach, the Element provides in one device an immensely practical tool to empower modern musicians.
Phones
Two touch sensitive volume control sliders, one for each headphone output.
Blend
A touch sensitive slider to set the blend between the main input (Intrument/Amp in) and the backing track (Bluetooth/Aux in) for the headphone out mix.
USB
One USB-C port for transferring impulse responses and firmware XLR outputupdates
Aux In
ou can connect the line/headphone out of your laptop/keyboard/mixer etc. into the 3.5 mm aux input on the Element.
DIMENSIONS
Width: 64 mm (2.95 in) | Height: 111 mm (4.37 in) | Depth : 35 mm (1,77 in)
Element with your pedalboard
Connect your instrument to your pedalboard as you normally would and add the Element at the end of the signal chain. Use the input labelled “INSTRUMENT IN” on the Element You can now choose the impulse response from slots 1-5 or the bypass signal. From here the signal is passed through to the XLR output and via the blend and volume controls to the headphone outputs.
Element with your amplifier and speaker cabinet
Note: The Element does NOT act as a loadbox! Always make sure your amplifier is connected to a suitable load!!!
The Element is built to work with amplifiers with a maximum output of 900 Watts. For the safest operation it is advised to connect the Element after your speaker cabinet from your speaker cabinet’s parallel output connector. Use the input labelled “AMP IN” on the Element. You can now choose the impulse response from slots 1-5 or the bypass signal. From here the signal is passed through to the XLR output and via the blend and volume controls to the headphone outputs.
In case the amplifier’s output is maximum 100 Watts, the Element can be connected between the amplifier and the speaker cabinet. Use the input labelled “AMP IN” for the amplifier and the output labelled “SPEAKER OUT” to connect the speaker cabinet to the Element. You can now choose the impulse response from slots 1-5 or the bypass signal. From here the signal is passed through to the XLR output and via the blend and volume controls to the headphone outputs.
If you are using a Darkglass amplifier with a class D poweramp you have the option to connect the amplifier straight to the Element without using a speaker cabinet or an external load. Use the input labelled “AMP IN” on the Element. You can now choose the impulse response from slots 1-5 or the bypass signal. From here the signal is passed through to the XLR output and via the blend and volume controls to the headphone outputs.
View full product details
Darkglass Electronics Microtubes X Ultra
$449.99
Darkglass Electronics Microtubes X Ultra
The Microtubes X Ultra greatly expands on the already immense versatility of the Microtubes X7. Featuring all the great controls that its predecessor has that allows users to select exactly what frequencies they want to compress and saturate for the low and treble respectively, but with four major additions providing an additional layer of flexibility, while maintaining the same compact footprint, making it an extremely complete tool for the modern bassist.
Features
Low Comp
Controls compression amount for the low band. Both threshold and makeup gain are controlled to maintain a constant level. This control is also used to control the compression amount when the compressor is enabled for clean signal in Darkglass Suite.
Low Level
Sets the output volume of the low-pass signal.
Low Pass Frequency
Controls the cut-off frequency to be mixed back to the high-pass side. Ranging from 50Hz (for only sub-bass) and 500Hz to preserve some clean mids.
High Level
Sets the output volume of the distorted high-pass signal.
High Drive
Sets the amount of distortion for the high pass side.
High Pass Frequency
Controls the cutoff frequency to be distorted, ranging from 100Hz (for thicker, fuzzier saturation) or 1kHz for ultra-sharp definition.
Master
+-12 dB. Sets the overall volume of the unit.
Low shelf
+-12 dB @ 80 Hz.
250 Hz / 500 Hz / 1,5 kHz / 3 kHz
+-12dB.
High shelf
+-12 dB @ 5 kHz.
Direct Output
Balanced XLR output for connecting the pedal to a microphone preamp, PA system, etc.
Ground lift
Disconnects the signal ground on the Direct Output to break any ground loops. Set this switch to either position that has less noise. The switch does not affect the ¼” output.
Cab Sim
Toggle the cabinet simulation on/off on the Direct Output. This switch completely bypasses all digital circuits and allows you to get a zero latency signal when needed.
Headphones
Microtubes X Ultra has a digitally controlled headphone amplifier with a 3.5mm stereo jack output. Digital volume control is available in Darkglass Suite. Headphone volume can be controlled directly on the pedal with the master volume control when the preamp is enabled. When the pedal is on bypass, the master volume does not affect the headphone volume.
USB
A Micro USB B connector allows you to connect the pedal to PC/Mac to load cabinet simulation impulse responses to the pedal and control various other settings. Download the free Darkglass Suite software from www.darkglass.com/suite to configure the pedal, load new impulses and download firmware updates.
Auxiliary Input
Perfect for quiet practice, you can now connect your PC or mobile device to your pedal to play along with your favorite songs, and backing tracks while using the headphone output.
DIMENSIONS
125x96x57 mm (4.92x3.77x2.24 in)
WARNING
WARNING: When the pedal is on bypass the master volume does not affect the headphone volume. In this case, the total volume is adjustable in Darkglass Suite. With sensitive headphones, the bypass volume can be very loud if not adjusted.
The Microtubes X Ultra has a current draw of 200mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons, it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty
Darkglass Microtubes 500V2 Bass Head
$799.99
MICROTUBES 500V2
Light and COMPACT
The Microtubes 500v2 is a 500W amplifier equipped with an all-analog preamplifier, custom-designed Darkglass high-efficiency class D Module, an ultra-quiet graphic equalizer, and a digital impulse-response cabinet emulator for DI outputs or headphones.
|
A new superior custom-designed Darkglass high-efficiency class D power amplifier module is the heart of this new line of our 500 Watt amplifiers. It enables the usage of speaker cabs with impedance as low as 2O, adding a new level of flexibility for your cabinet options. A much-requested new feature is the cabinet simulation which utilizes an improved version of our Cab Sim module. The module has three slots for hi-res impulse responses which are active for both the headphone output and the balanced XLR DI output. We have also added a one-knob compressor with intelligent makeup gain for level consistency, while a new ultra-quiet graphic equalizer now replaces the previous 4-band type one. |
||||
|
||||
Darkglass Electronics Alpha Omega
$319.99
Darkglass Electronics Alpha Omega
Besides being an amazing composer, producer and bassist, Jon Stockman is amazing at crafting some of the most devastating bass tones in the world. We got together in our then Helsinki headquarters 18 months ago and after endless tweaking and tens of prototypes we are finally ready to announce our first co-designed creation: Alpha · Omega.
This creation differs greatly from our previous preamplifiers and overdrives: it is fully operational amplifier based and has two distinct distortion circuits (Alpha and Omega) which can be selected or blended using our Mod knob. This unusual control, in conjunction with the toggle switches and 3 active band equilizer makes Alpha · Omega the most flexible among our designs.
Features
Blend
Mixes the clean and processed signals. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine mix tuning.
Level
Sets the volume of the overdriven signal.
Drive
Sets the amount of gain in the overdriven signal.
Bite
Boosts High Mids (2.8kHz) for additional presence and definition.
Growl
Shelving Bass Boost for a fatter tone and increased low end saturation.
Mod
Selects or mixes between the two distinct distortion circuits: Alpha is punchy, tight with a lot of definition, whereas Omega is simply brutal and raw.
Bass
+-12dB @ 80Hz
Mid
+-12dB @ 500Hz
Treble
+-12dB @ 5kHz
Parallel Output
Hardwired copy of your input signal, useful for getting a clean signal in recording and live situations
Direct Output
A balanced version of the ¼” output, useful for running into PA’s or studio mixing consoles.
DIMENSIONS
12×10.7 cm (4.72×4.21 in)
WARNING
The Alpha·Omega has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
Darkglass Electronics Alpha Omega Ultra w/ Aux Input
$449.99
Darkglass Electronics Alpha Omega Ultra w/ Aux Input
Features
Blend
Mixes the clean and processed signals. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine mix tuning.
Level
Sets the volume of the overdriven signal.
Drive
Sets the amount of gain in the overdriven signal.
Bite
Boosts High Mids (2.8kHz) for additional presence and definition.
Growl
Shelving Bass Boost for a fatter tone and increased low end saturation.
Mod
Selects or mixes between the two distinct distortion circuits: Alpha is punchy, tight with a lot of definition, whereas Omega is simply brutal and raw. On the Darkglass Suite you can assign footswitch control of the Mod to toggle between Alpha and Omega.
Master
Whereas the Level knob control the output of the overdrive section the Master volume adjusts the overall volume of the unit. Ideal for fine tuning the output on clean mode. It also serves as a DI and headphone volume control. Please note that volume is not affected by this control when the pedal is on bypass.
Bass
Low shelf +-12dB @ 80 Hz
Mid bands
+-10dB @ 250 Hz, 500 Hz, 1.5 kHz, 3 kHz
Treble
High shelf +-12dB @ 5 kHz
Ground lift
Disconnects the signal ground on the Direct Output to break any ground loops. Set this switch to either position that has less noise. The switch does not affect the ¼” output.
Cab Sim
Toggle the cabinet simulation on/off on the Direct Output. This switch completely bypasses all digital circuits and allows you to get a zero latency signal when needed.
Headphones
Alpha·Omega Ultra has an internal stereo headphone amplifier capable of driving a minimum load of 16 ohms from the 3.5mm stereo jack. Use the Master volume control to adjust the level.
USB
A Micro USB B connector allows you to connect the pedal to PC/Mac to load cabinet simulation impulse responses to the pedal and control various other settings.
Aux In
This 3.5mm stereo input allows you to practice with backing tracks from e.g. your smartphone or laptop. Auxiliary input can only be used with the headphone output. The pedal does not control the level, it must be set from your audio source. Remember to always first set the level low before connecting anything to the aux in!
DIMENSIONS
125x96x57 mm (4,92x3,77x2,24 in)
WARNING
WARNING: When the pedal is on bypass the master volume does not affect the headphone volume. In this case, the total volume is adjustable in Darkglass Suite. With sensitive headphones, the bypass volume can be very loud if not adjusted.
The Alpha·Omega Ultra has a current draw of 130mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons, it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty

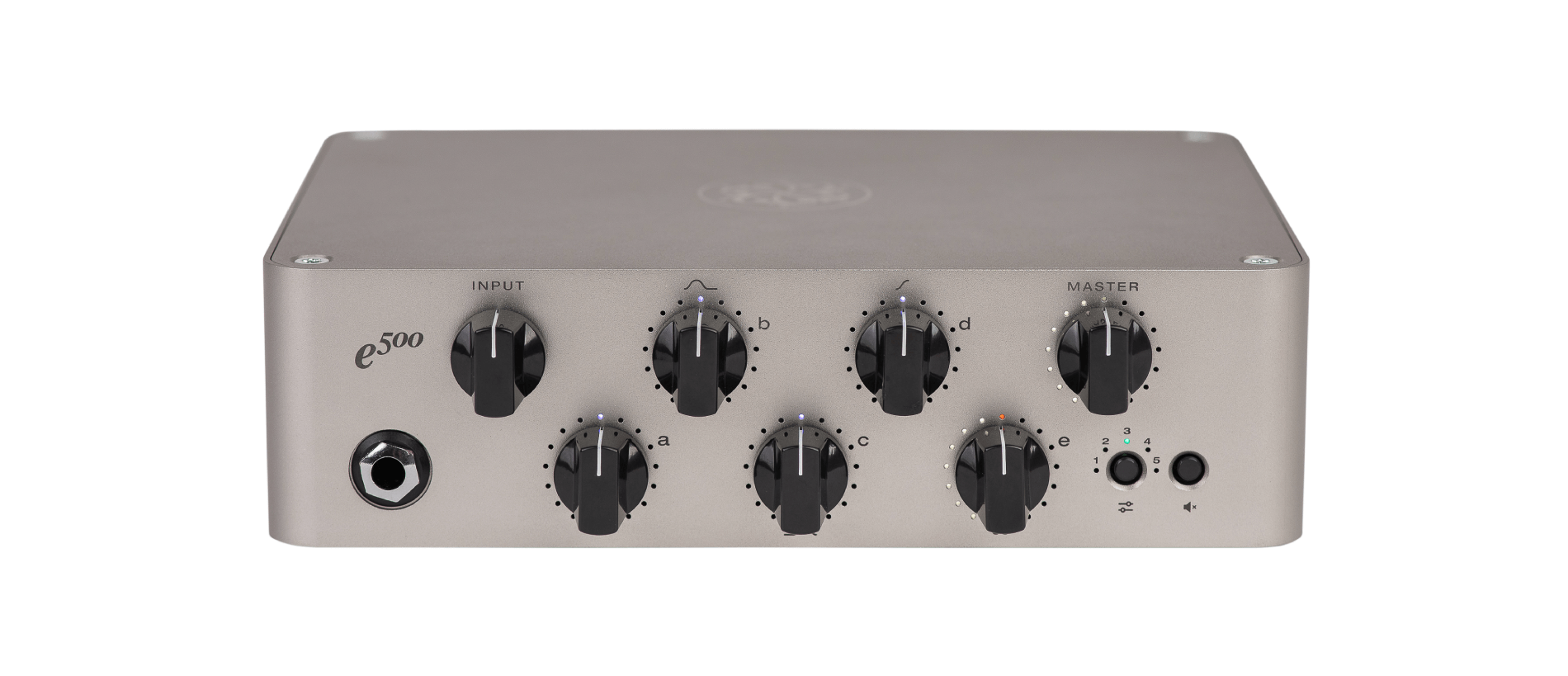

Darkglass Electronics Exponent 500 Bass Head
$999.99
We always craved a clean head. A device that is “out of the box” is an amplifier without added effects. Uncomplicated, intuitive, and for each one of us to be able to unveil the layer of sophistication that better serves our projects and skills. The Exponent 500 is a new concept that once connected turns into a multi-effect, with fully programmable and presettable signal chains with all the components a professional bassist requires.
Front Panel Features
Input
Use this jack to connect your instrument via a standard ¼” mono cable.
Quick-Pots
There are five Quick-Pots on Exponent 500’s front panel (a, b, c, d and e) .
By default, these pots are mapped to the Amp EQ’s four frequency bands and a preset-specific control.
In the Darkglass Suite, you can freely bind the Quick-Pots to your selection of any five controls from the effects in your signal chain.
Master
Use this knob to control the overall volume of the amplifier.
Preset
Pressing the preset button changes through presets 1 to 5 and a bypass signal. The current preset is shown with a single LED next to the preset number. When e500 is bypassed, all preset LEDs show a dim white color.
Long-press the preset button to start Bluetooth pairing. All preset LEDs will breathe white while pairing is active.
Mute
Pressing the mute button toggles mute on the physical outputs. When e500 is muted, all preset LEDs will illuminate with a dim red color.
DIMENSIONS
21x17.5x6cm / Weight: 1,65kg
Exponent 500 comes preloaded with five versatile factory presets. Using e500 with the Darkglass Suite isn’t necessary, but we recommend it!
Darkglass Suite unlocks the full potential of Exponent 500 by providing an interface to interact and modify the signal chain running on each preset.
Use the iOS or Android versions of the Darkglass Suite to create, edit, share, and apply presets. Please make sure your Darkglass Suite version is 4.3.0 or newer!
View full product details
Darkglass Electronics Microtubes X
$219.99
Darkglass Electronics Microtubes X
Features
High-pass frequency
Controls the cutoff frequency to be distorted, ranging from 100Hz (for thicker, fuzzier saturation) or 1kHz for ultra-sharp definition.
Low-pass frequency
Controls the cutoff frequency to be mixed back to the high-pass side. Ranging from 50Hz (for only sub-bass) and 500Hz to preserve some clean mids.
Level
Sets the overall output volume of the unit.
Drive
Sets the amount of distortion for the high pass side.
Mix
Sets the blend between low-pass and high-pass signals.
Mids
Active mid control placed after the Mix control. +-12dB @ 500Hz.
DIMENSIONS
75x111x43 mm (2.95x4.37x1.77 in)
WARNING
The Microtubes X has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons, it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty
Darkglass Electronics Aggressively Distorting Advanced Machine Distortion & Compression Pedal
$549.99
Darkglass Electronics Aggressively Distorting Advanced Machine Distortion & Compression Pedal
The Aggressively Distorting Advanced Machine is the result of a collaboration with one of the most celebrated artists in today’s metal scene - Adam "Nolly" Getgood. This pedal captures Nolly’s entire tonal arsenal meticulously refined by years of in-depth testing and experience in one striking enclosure.
Aggressively Distorting Advanced Machine has three fully programmable rotating footswitch presets. Each of these stores your unique blend of compression, distortion, impulse responses, EQ parameters, and signal chain settings. Featuring a unique and innovative top-notch precision touch slider interface, for its 6-band programmable EQ.
It also incorporates a USB-C audio interface and balanced stereo outputs for studio monitors and is equipped with an extra accurate chromatic tuner, that also works well with down-tuned guitars and basses.
Features
Compression
Controls the amount of input gain to the compressor and intelligently applies the correct amount of makeup gain so that your signal is always driven at the appropriate level, no matter how much compression is applied.
Drive
Adds distortion and drive to your signal. Crank this knob to apply Nolly’s favorite vintage distortion to the distorted part of the signal chain.
Character
Changes the tone of the distortion, adding brightness to the distortion signal.
Blend
Mixes between the distortion signal and the clean sidechain signal
Level
Controls the master volume of Aggressively Distorting Advanced Machine.
Touch Sensitive Sliders
Each slider has a -12 dB to 12 dB range. From left to right, the frequency bands for each slider correspond to a low shelf, 250 Hz, 500 Hz, 1.5 kHz, 3 kHz, and a high shelf.
Input
This is the primary instrument input on Aggressively Distorting Advanced Machine. Connect your instrument or output from your pedal board to the 1/4” mono jack.
Aux In
The stereo input of Aggressively Distorting Advanced Machine enables the playback of backing tracks while practicing or recording. Connect your mobile phone, laptop etc. to the 1/8” stereo jack.
Headphone Output
The headphone output can handle headphones with an impedance of 16 - 600 ohms. Connect your headphones to the 1/8” stereo jack and set the desired level from the dedicated potentiometer next to the jack.
Balanced Outputs
The two balanced outputs add routing versatility and the option of using Aggressively Distorting Advanced Machine as a fully equipped audio interface.
Direct Output
An XLR output with a ground lift switch provides a reliable standard connection to a mixing desk or an external audio interface for a guaranteed low-noise signal.
MIDI In
A standard 1/8” TRS jack allows connecting an external MIDI controller to Aggressively Distorting Advanced Machine for even more flexibility.
USB
The USB-C port unlocks Aggressively Distorting Advanced Machine’s USB audio interface capabilities and enables interaction with the Darkglass Suite desktop app, allowing for software updates and access to the Darkglass IR library, containing hundreds of cabinet simulations.
DIMENSIONS
18*12*6 cm | Weight 0.7 kg
WARNING
The Aggressively Distorting Advanced Machine has a current draw of 500mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons, it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty
MIDI specification for Aggressively Distorting Advanced Machine FW v1.0
With Aggressively Distorting Advanced Machine’s MIDI input, you can change between your saved presets and update the smart potentiometers, touch sliders, and encoders.
Aggressively Distorting Advanced Machine responds to MIDI messages from all channels, so you do not have to otherwise specify a MIDI channel to use Aggressively Distorting Advanced Machine’s MIDI input functionality.
To change the parameters of Aggressively Distorting Advanced Machine, you must send MIDI control change messages. These are mapped to ADAM’s parameters as follows:
0 to 4: Smart potentiometers from Compression to Level, left-to-right
5 to 10: Touch-sensitive sliders, left-to-right
11 to 13: Encoder rotation setting, left-to-right
The value of the control change message (0 to 127) is mapped across each of these controls.
For example, a control change 3 message with value 64 would set the Blend potentiometer halfway, and a control change 10 message with value 0 would move the high shelf EQ band to -12 dB.
To change between Aggressively Distorting Advanced Machine’s presets, you must send MIDI program change messages. The program change number will always map to presets A, B, or C.
Please note that these specifications are subject to change in future firmware updates.
Audio routing specification for Aggressively Distorting Advanced Machine FW v1.0
Aggressively Distorting Advanced Machine has four ways to receive audio: Instrument in, Aux in, Bluetooth, and USB output from your DAW when used as an interface.
Aggressively Distorting Advanced Machine has four ways to output audio: a stereo balanced output pair, stereo headphones, a direct XLR output, and USB input to your DAW when used as an interface.
Please note that the routing is subject to change in future firmware updates.
USB routing
Aggressively Distorting Advanced Machine supports 48 kHz and 44.1 kHz sampling rates.
USB output (to Aggressively Distorting Advanced Machine)
Output 1: Balanced left + Headphone left
Output 2: Balanced right + Headphone right
Output 3: Balanced left
Output 4: Balanced right
Output 5: XLR DI (mono)
Both Mac and PC send system audio to outputs 1 and 2 by default, so you can always use Aggressively Distorting Advanced Machine’s stereo output of choice without having to set up any extra routing. The level of these outputs is controlled by the small volume potentiometer at the top of Aggressively Distorting Advanced Machine. The other outputs have no volume control on Aggressively Distorting Advanced Machine.
USB input (from Aggressively Distorting Advanced Machine)
Input 1: Processed signal (unprocessed signal if bypassed)
Input 2: Unprocessed raw signal
Input 3: Aux left + Bluetooth left
Input 4: Aux right + Bluetooth right
Audio routing
When Aggressively Distorting Advanced Machine is not bypassed, the Level potentiometer always controls the volume of your instrument input at all four outputs, and has no effect on the USB/Aux/Bluetooth audio. When Aggressively Distorting Advanced Machine is bypassed, the Level potentiometer has no effect.
Your instrument, Aux input, and Bluetooth audio is routed to the headphone and balanced outputs. The media volume at these outputs can be controlled with the small potentiometer at the top of Aggressively Distorting Advanced Machine.
- When using the balanced outputs, the media volume and instrument volume level are separately controlled (small volume potentiometer at the top of Aggressively Distorting Advanced Machine and the Level potentiometer, respectively).
- When using headphones, the volume is controlled in the same way, with one exception: the headphone volume potentiometer acts as an overall master volume for both media and your instrument input.
- The XLR DI output is routed only with your instrument output and USB output 5.
The media playback volume level on Aggressively Distorting Advanced Machine is not applied to USB inputs 3 and 4.
Known issues: USB output 5 is not routed when the unit is bypassed. This will be fixed in a future firmware update.
View full product details
Darkglass Electronics Alpha-Omega Photon
$519.99
Darkglass Electronics Alpha-Omega Photon
A new era for musical credos has set more elevated standards.
Versatility, empowerment, limitless options, and ever-demanding tools at the disposal of every musician and composer are today on demand. A call for inventive devices continues to make musicians more inspired, clever and connected.
We took our Alpha·Omega, and with relentless efforts added all the learned engineering to it. Placing the iconic distortion circuit into a new paradigm enables a range of possibilities that were never before available.
A comprehensive design allows programming each part of the pedal, from compression, distortion, and cabinet simulation in the signal chain to presets via MIDI and the Darkglass Suite.
The Alpha·Omega now has its ultimate interface. Fully programmable, empowered, and never before this versatile.
Features
Compression
The Compression potentiometer is the one-knob solution for compression on the Alpha·Omega Photon. This controls the amount of input gain to the compressor and intelligently applies the correct amount of makeup gain so that your signal is always driven at the appropriate level, no matter how much compression is applied.
Drive
The Drive potentiometer adds distortion and drive to your signal. Crank this knob to apply the Alpha·Omega distortion to the distorted part of the signal chain.
Mod
The MOD potentiometer selects or mixes between the Alpha and Omega circuits. Alpha is punchy, tight with a lot of definition, whereas Omega is simply brutal and raw.
Blend
The Blend potentiometer mixes between the distortion signal and the clean sidechain signal.
Level
The Level potentiometer controls the master volume of the Alpha·Omega Photon.
Touch Sensitive Sliders
Each slider has a -12 dB to 12 dB range. From left to right, the frequency bands for each slider correspond to a low shelf, 250 Hz, 500 Hz, 1.5 kHz, 3 kHz, and a high shelf.
Input
This is the primary instrument input on the Alpha·Omega Photon. Connect your instrument or output from your pedal board to the 1/4” mono jack.
Aux In
The stereo input of the Alpha·Omega Photon enables the playback of backing tracks while practicing or recording. Connect your mobile phone, laptop etc. to the 1/8” stereo jack.
Headphone Output
Headphone Outputmeter next to the jack.
Balanced Outputs
The two balanced outputs add routing versatility and the option of using the Alpha·Omega Photon as a fully equipped audio interface. Connect your studio monitors, amplifier or other effects to the 1/4” balanced jacks using a TRS connector (Tip +, Ring -, Sleeve GND). If you feed an unbalanced input from these outputs, use an instrument cable with a mono 1/4” plug.
Direct Output
An XLR output with a ground lift switch provides a reliable standard connection to a mixing desk or an external audio interface for a guaranteed low-noise signal.
MIDI In
A standard 1/8” TRS (Type B) jack allows connecting an external MIDI controller to the Alpha·Omega Photon for even more flexibility.
USB
The USB-C port unlocks the Alpha·Omega Photon’s USB audio interface capabilities and enables interaction with the Darkglass Suite desktop app, allowing for software updates and access to the Darkglass IR library, containing hundreds of cabinet simulations. USB MIDI is also supported.

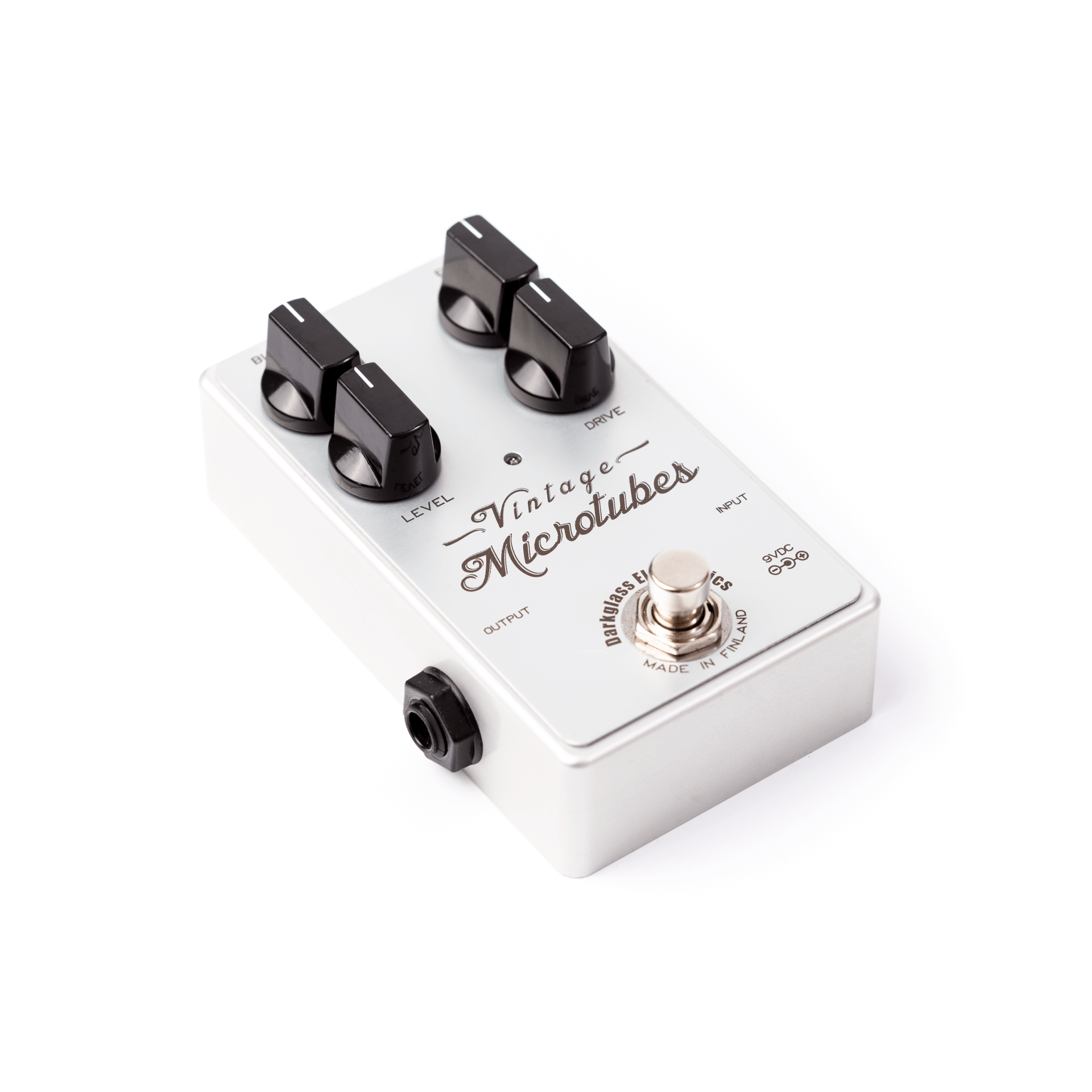

Darkglass Electronics Vintage Microtubes
$219.99
Darkglass Vintage Microtubes
The Microtubes Vintage is our tribute to some of the most legendary sounds in rock history. It provides warm tube-like tones with a natural dynamic response that echoes the organic compression of old tube amps and reel-to-reel tape machines.
Level
Sets the volume of the overdriven signal.
Drive
Sets the amount of saturation in the overdriven signal.
Blend
Mixes the clean input signal with the overdriven signal. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.
Era
Interacts with the Drive knob to shape the character of the pedal. Dial it down to get the warm midrange tones of the 70s or crank it up to get the punchy metallic tones of 80s and 90s rock.
View full product details
Darkglass Limited Edition 10th Anniversary B7K
$329.99
MICROTUBES B7K “10TH ANNIVERSARY” LIMITED EDITION
This limited edition is a celebration of the pedal that got us started - this is a tribute to every bass player that believed in the adventure of cutting into the mix and a commendation for the incredible support and loyalty that we have received since our humble beginnings.
Features
Level
Sets the volume of the overdriven signal.
Drive
Sets the amount of saturation in the overdriven signal.
Blend
Mixes the clean input signal with the overdriven signal. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.
Grunt Switch
Sets the amount of low frequency content to saturate by selecting between three different bass boost levels before the clipping stage.
Attack Switch
Sets the amount of treble content to saturate: The "Boost" setting emphasizes the treble content extra clarity and presence. The "Flat" position leaves this register untouched while the "Cut" position will reduce the amount of high frequencies being saturated.
Low
+-12dB @ 100Hz
Low Mid
+-12dB @ 1kHz
Hi Mid
+-12dB @ 2.8kHz
Treble
+-12dB @ 5kHz
Direct Output
A balanced version of the ¼” output, useful for running into PA’s or studio mixing consoles.
DIMENSIONS
94x120x46 mm (3.70x4.72x1.81 in)
WARNING
The Microtubes B7K has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
