AC15HW1: 15 Watts, Single 12″ Celestion G12M Greenback

HAND WIRED

AC15 HAND-WIRED

There may never have been an amp boasting such a lofty and pure sound in the entire history of VOX. The VOX Hand-Wired Series relies on the painstaking technique of turret board hand-wiring – a method requiring a high level of skill and craftsmanship – is used, resulting in wiring that’s beautiful in its artistry, ensuring an efficient signal path with minimal loss and no restriction in amplitude. In the Hand-Wired Series, tubes, transformers, speakers, chassis, and custom parts all join together in an ideal state to deliver the richest and most powerful sonic experience – the ultimate amp. Not bound by tradition, the VOX Hand-Wired Series also provides a variety of new functions that keep pace with the needs of today’s artists. Offering a rich variety of tonal shadings and a broad model lineup, the enormous potential of the VOX Hand-Wired Series will reveal itself in any musical scenario.



OUTPUT POWER

15 Watts RMS
8 or 16 Ohms

---

SPEAKER

1 x 12″ Celestion G12M Greenback

---

INPUTS

1 x Normal High Input Jack
1 x Normal Low Input Jack
1 x Top Boost High Input Jack
1 x Top Boost Low Input Jack

---

OUTPUTS

1 x External Speaker Jack
1 x Extension Speaker Jack

---

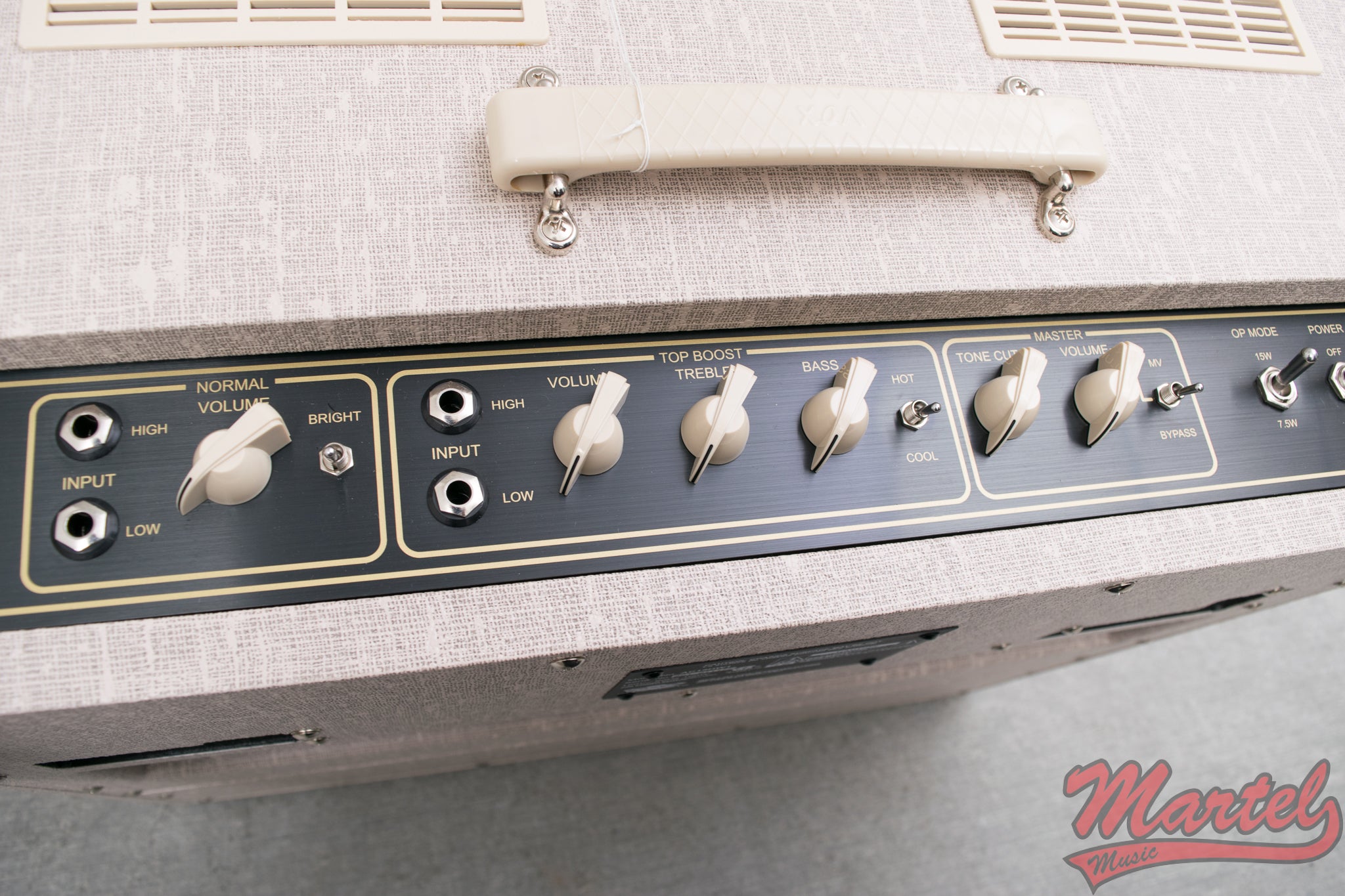

CONTROLS

Master Volume, Master Tone Cut, Normal Volume, Top Boost Volume, Top Boost Bass, Top Boost Treble

---

TUBE COMPLIMENT

3 x Ecc83|12AX7 (preamp)
2 x EL84 (power amp)
1 x EZ81 (rectifier)

---

DIMENSIONS (W X D X H)

610 x 260 x 550 mm | 24.02 x 10.24 x 21.65 inches
22.2 kg | 48.9 lbs
