Description

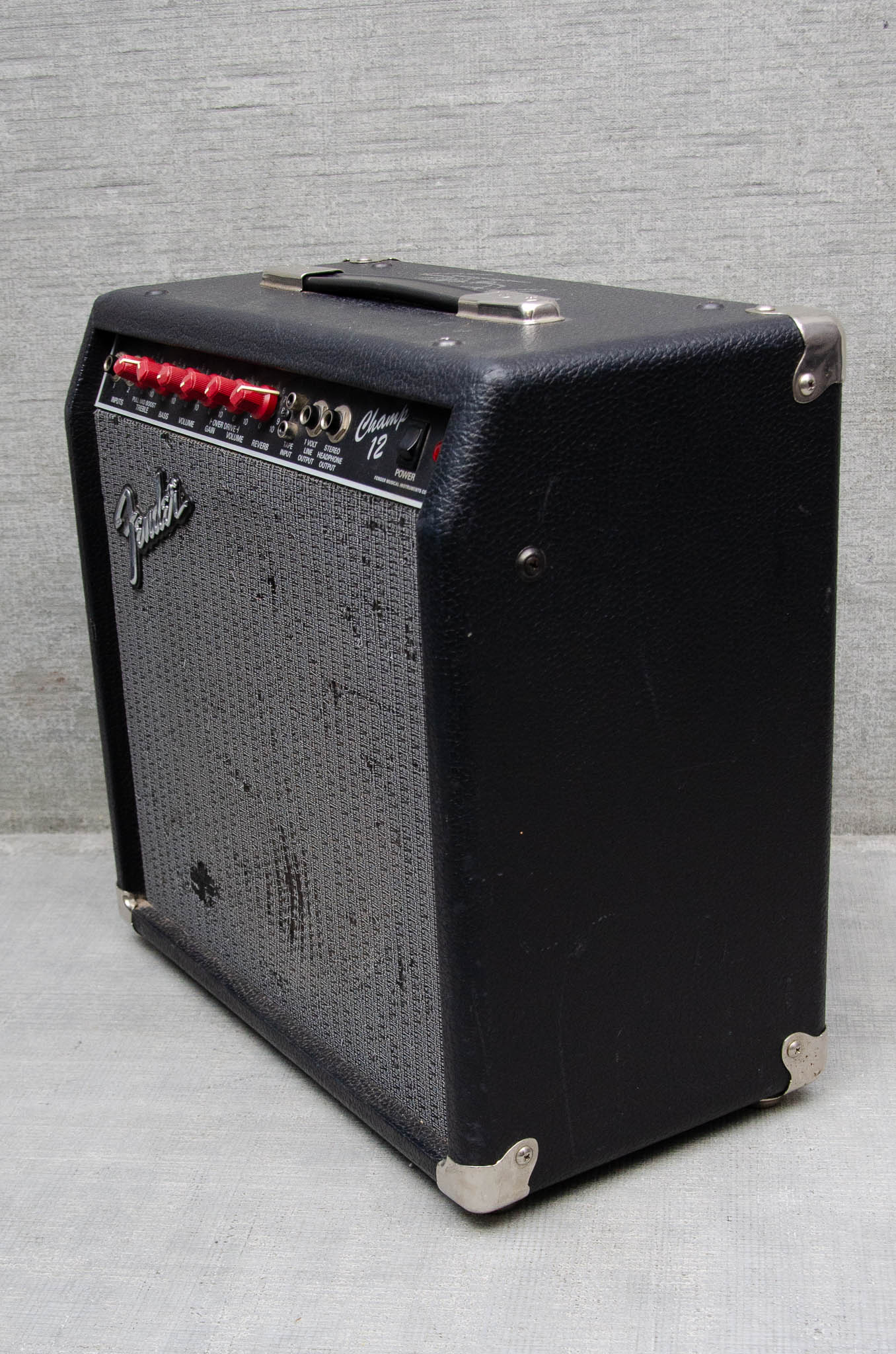

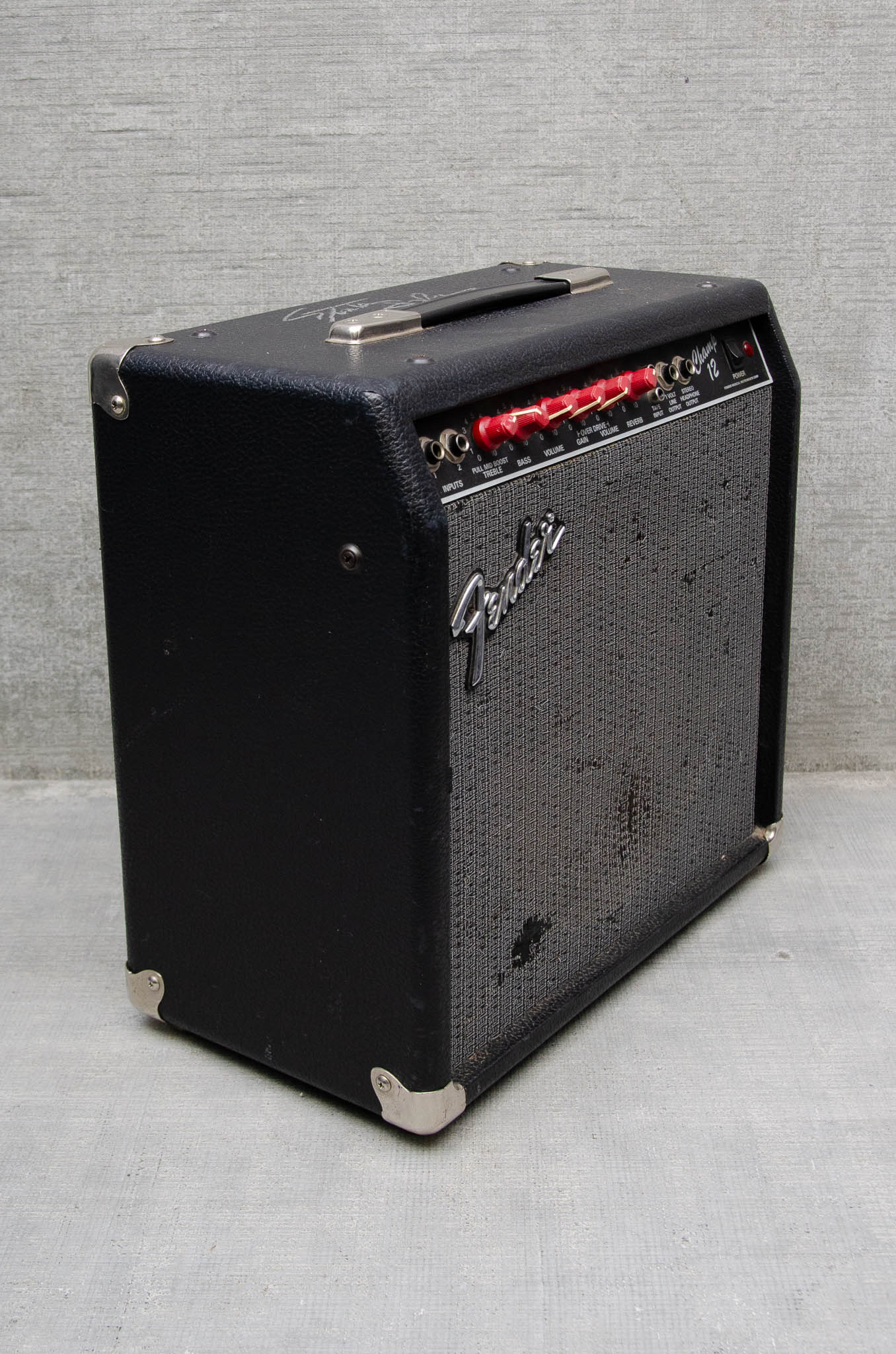

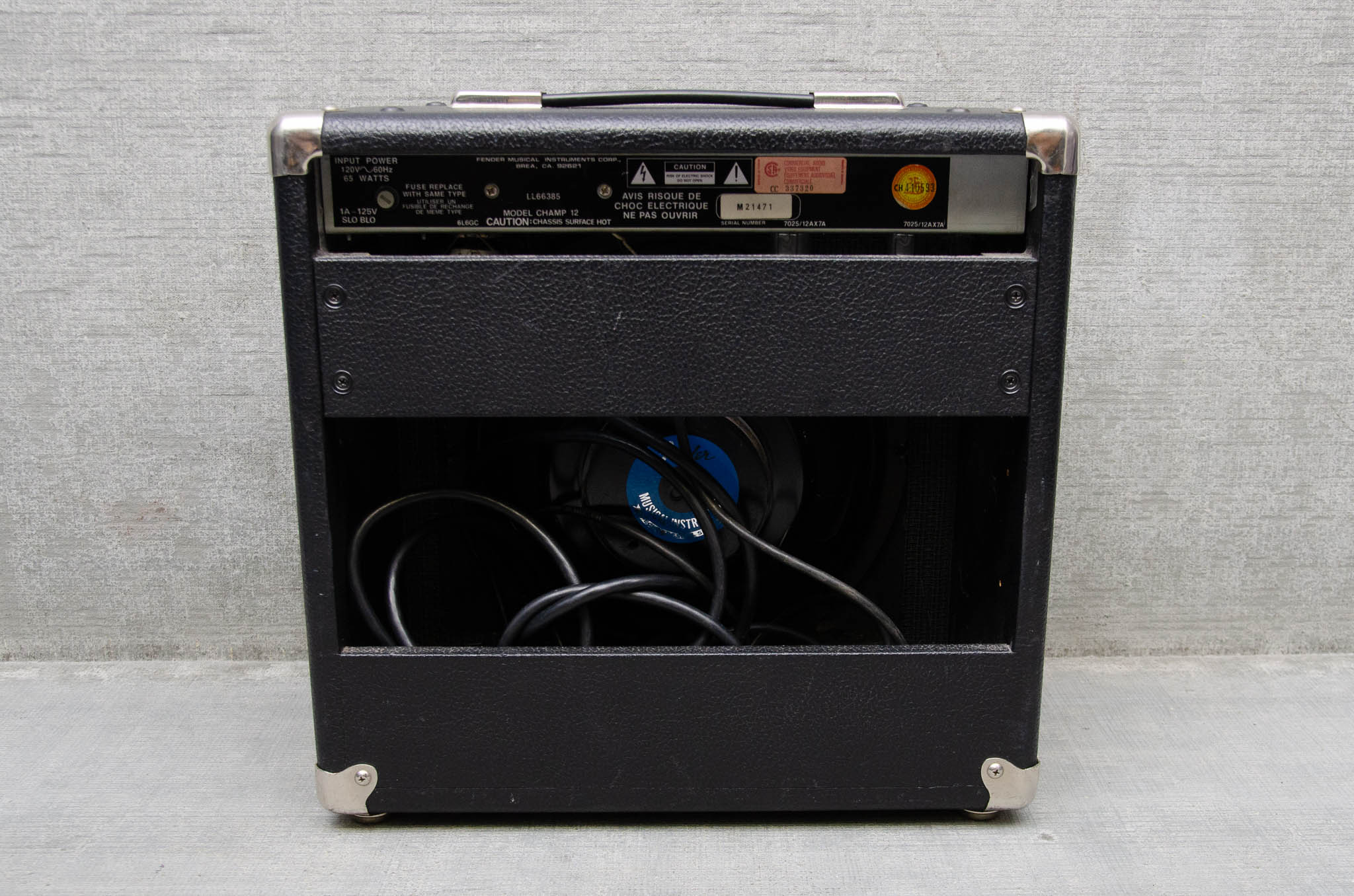

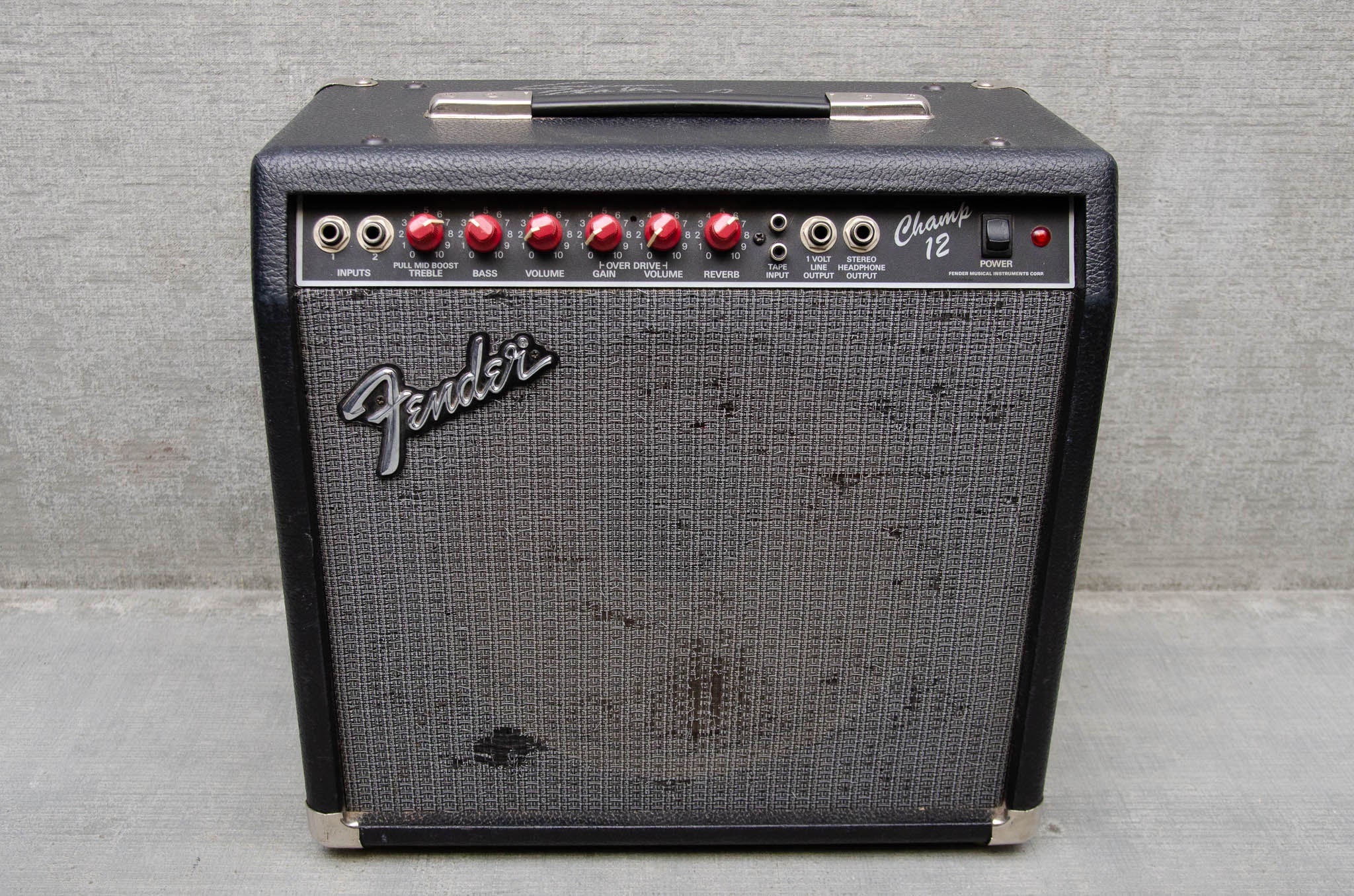

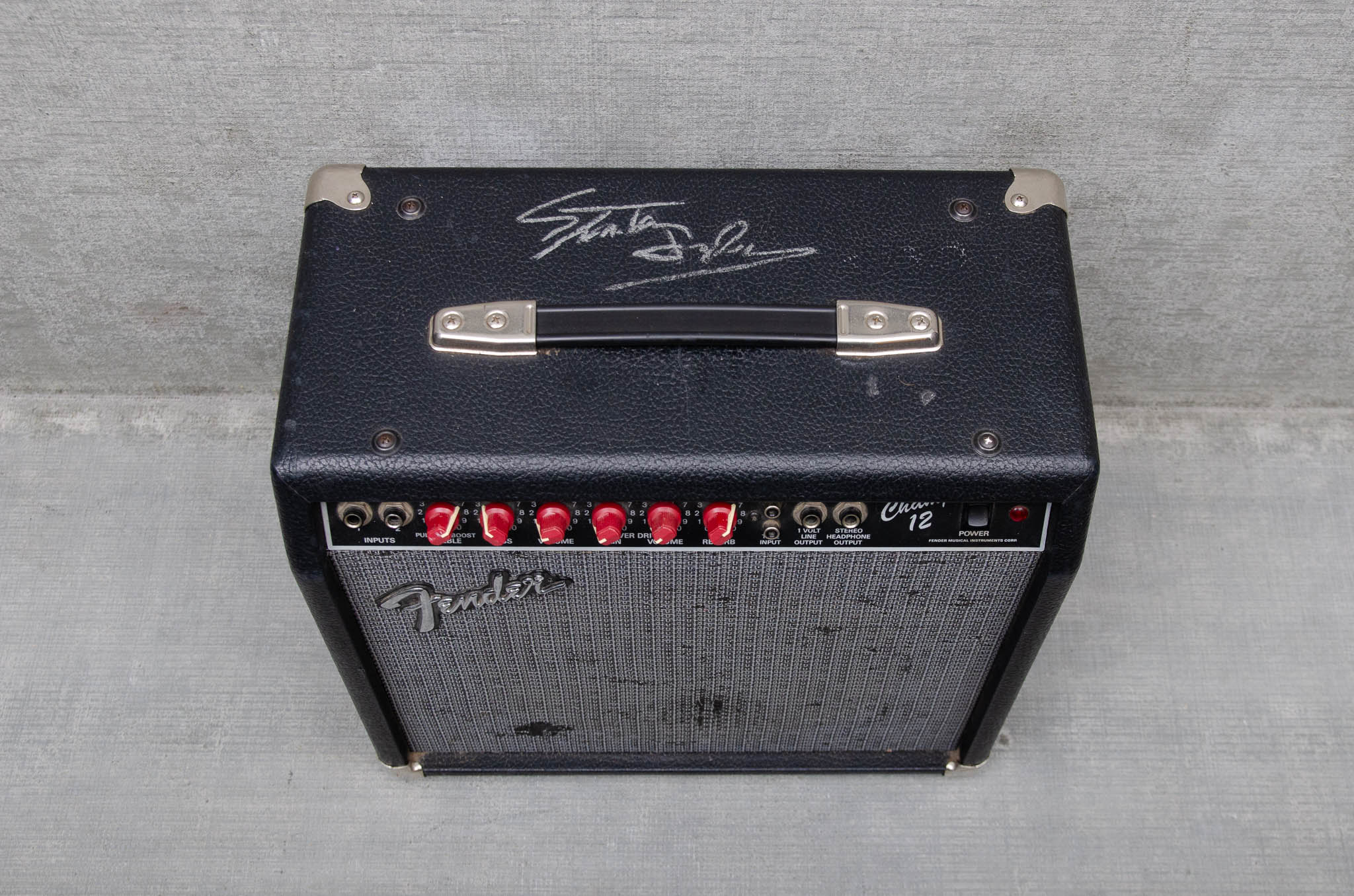

Pre-owned Fender Champ 12 Red Knob manufactered from 1987-1992. The grille cloth has some wear and fading, and is fraying in some areas. The tolex shows light wear and is signed by Stanley Jordan on the top. Runs perfectly. Footswitch is included/hardwired. Serial M21471.
The Fender CHAMP 12 AMPLIFIER combines all tube design, foot-switchable overdrive capability, Reverb, and a Fender Special Design 12” speaker all in a compact yet sturdy enclosure. The CHAMP 12 utilizes state of the art construction techniques and minimum parts count for maximum reliability. The amplifier uses only three tubes and features a unique CLASS-A type output section which causes the 6L6GC tube to produce a distinctively smooth distortion sound which has proven to be a very popular characteristic of low power tube amps over the years.
The tonal characteristics have been tailored to produce a wide range of sounds in both the clean and overdrive modes. The tone controls actually work over a different range while in the overdrive mode effectively giving the player a second set of controls. The Pull for Mid Boost feature on the Treble control provides even more flexibility and will produce a fatter tone useful for distortion playing.
SPECIFICATIONS
- Weight: 30 lbs.
- Dimensions: 15.75” x 16.375” x 9”
- Power Output: 10 Watts RMS into 8 ohms, 30 watts peak music power
- Speaker: One 12” Fender Special Design. 8 ohms nominal impedance
- Input Impedance: Input 1- 1 Meg ohm, Input 2- 136k ohm. Nominal level 500 mv
- Tape input Impedance: Greater than 68k ohms. Nominal level 500 mv
- Line Output: 1 Volt nominal into 600 ohms or greater
- Headphone Output: Capable of driving 8 ohm or greater stereo headphones
- Power Requirements: 120 Volts AC 60 Hz., 540 mA, 65 Watts
- Fuse Type: 1 Amp 125 Volt minimum, SLO-BLO
