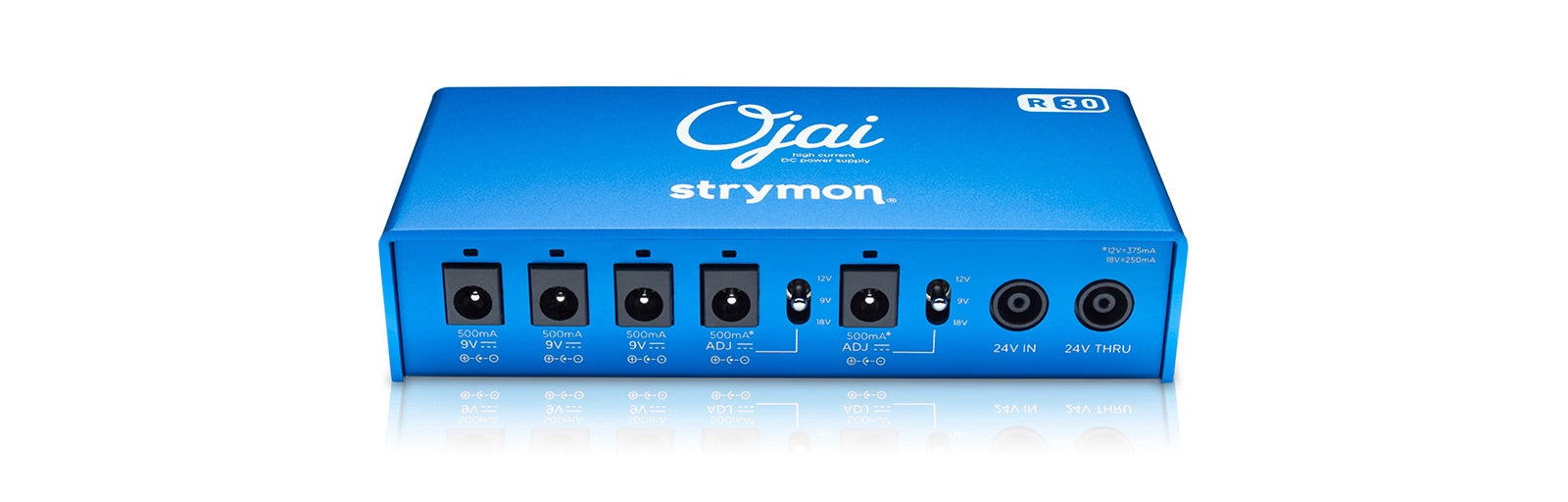

Strymon Ojai R30 High Current DC Power Supply

Formidably Flexible.

Power your pedals with Ojai R30—the highest horsepower, most technologically advanced effects pedal power supply of its size. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a low profile, expandable package, giving you room to grow.

Ojai R30’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range.



  • 5 high-current, fully isolated 9V outputs with center-negative polarity
    • 3 dedicated 9V outputs (500mA)
    • 2 adjustable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
  • 500mA per output powers nearly any pedal
  • 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
  • 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included

Ojai R30 dimensions: 5.1″ x 2.3″ x 1.15” (130mm x 58mm x 29mm)
Ojai R30 weight: 6 oz. (171g)
PS-124 power adapter dimensions: 4.2″ x 2.15″ x 1.25” (107mm x 55mm x 32mm)
PS-124 power adapter weight: 4.7 oz. (133g)
