Description

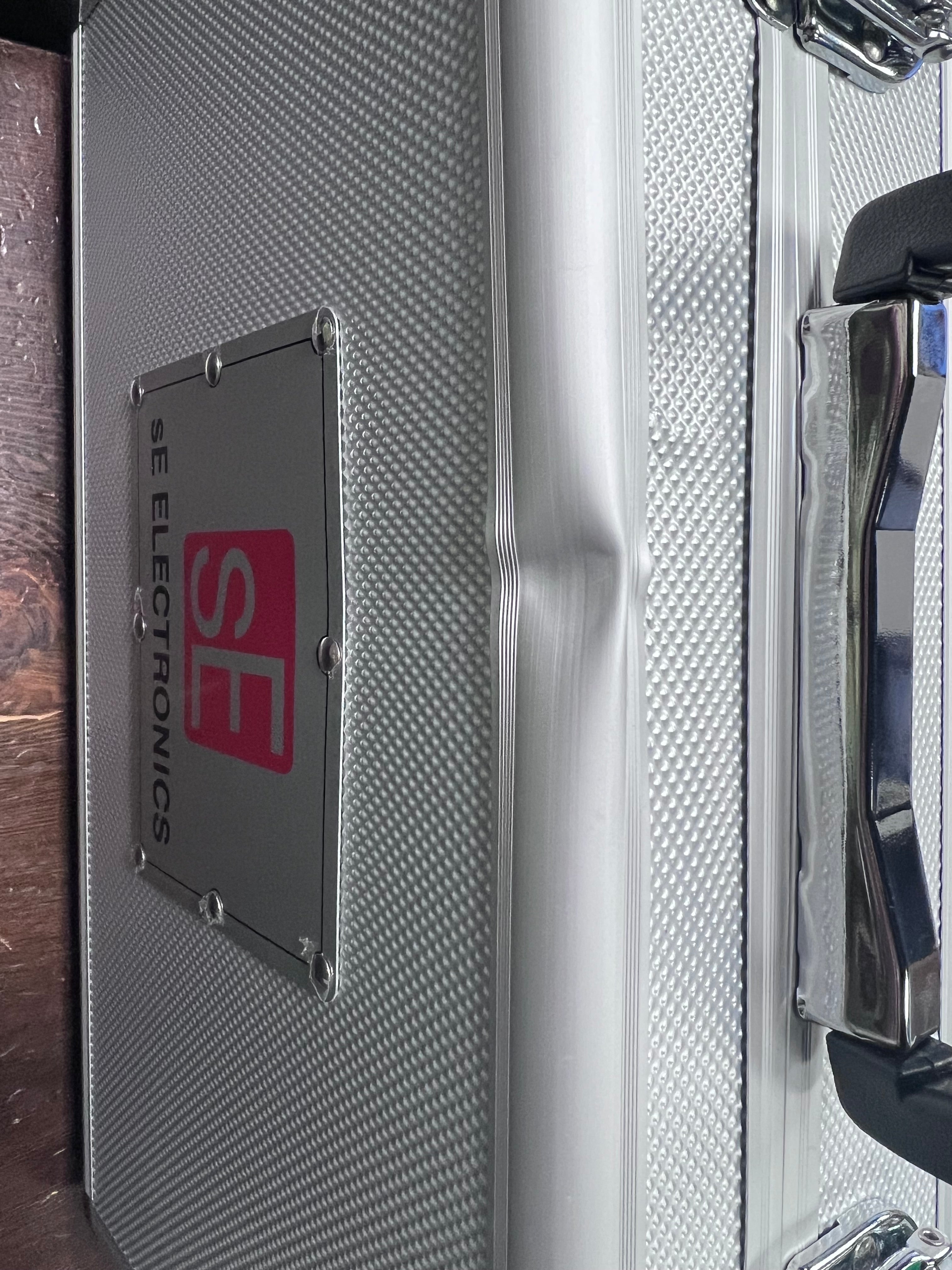

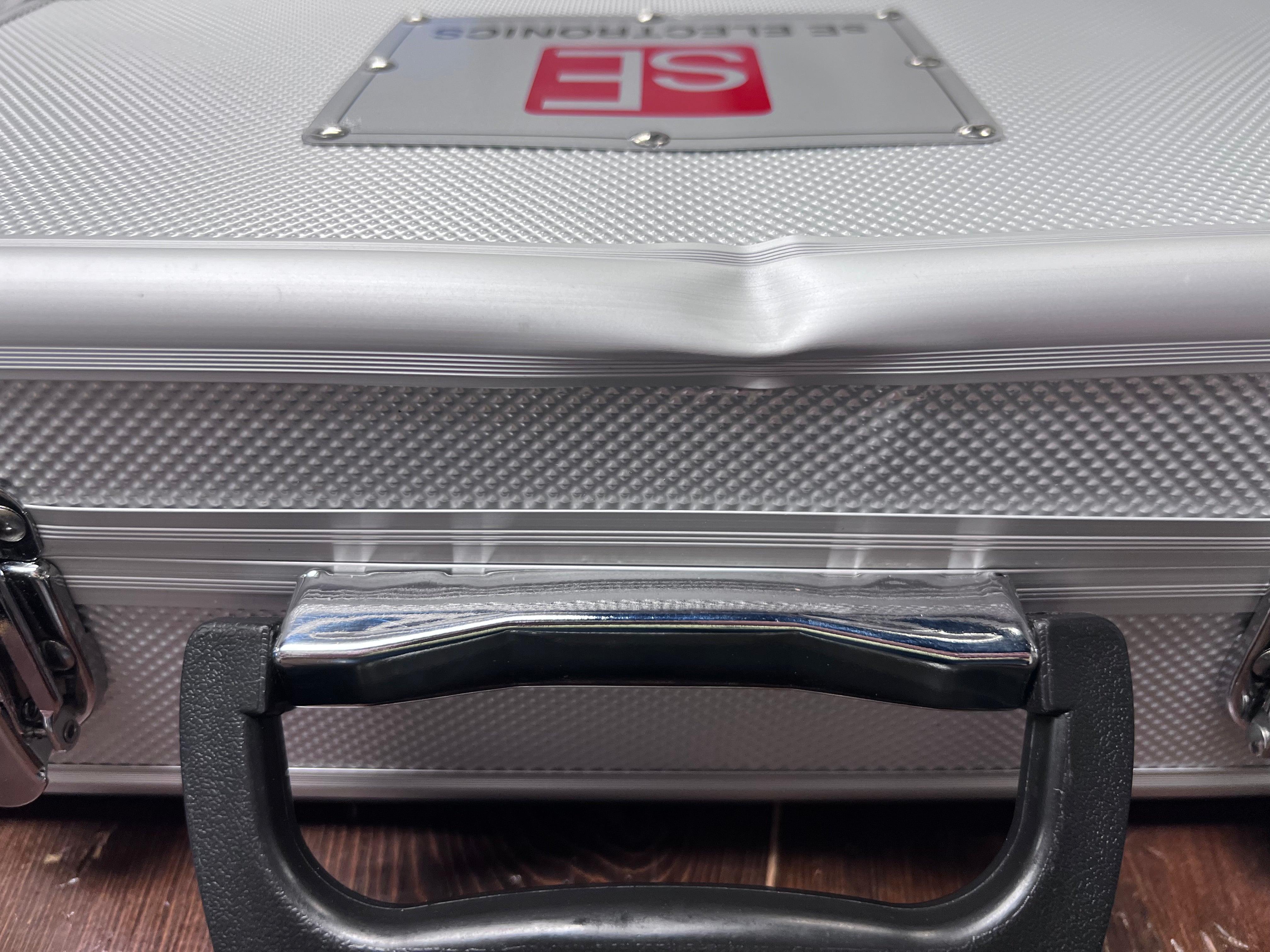

sE Electronics sE8 Small-diaphragm Condenser Microphone- B-Stock- aluminum case was dented in shipping, microphones were not affected.
Highlights
Hand-made capsule & all-metal build
Balanced sound & sophisticated backplate design
Perfect for sources like high-hats and drum overheads
One of the quietest small-capsule mics on the planet
Highest dynamic range and SPL handling in its class
Integrated attenuation pads and low-cut filters
Compatible with our sE8 omni capsule
Components
CapsuleHand-crafted 1/2" True Condenser
Power
Electrical impedance110 Ohms
Recommended load impedance>1k Ohms
Connectivity3-pin male XLR connector
Powering48V Phantom Power (P48 according to IEC 61938)
Sound
Polar patternsCardioid
Frequency range20 Hz - 20 kHz
Sensitivity25 mV / Pa (-32 dBV)
Max SPL139 / 149 / 159 dB (0 / 10 / 20 dB pad) (0.5% THD @ 1kHz)
Equivalent noise level13 dB
Dynamic range126 / 136 / 146 dB (0 / 10 / 20 dB attentuation pad)
Signal to noise ratio81 dB
Low-cut filter80 / 160 Hz, 6 dB / Oct, switchable
Attenuation pad10 / 20 dB, switchable
Current consumption2.7 mA
Dimensions
Mic Diameter23 mm (0.91 in.)
Mic length120 mm (4.72 in.)
Mic weight141 g (4.97 oz.)

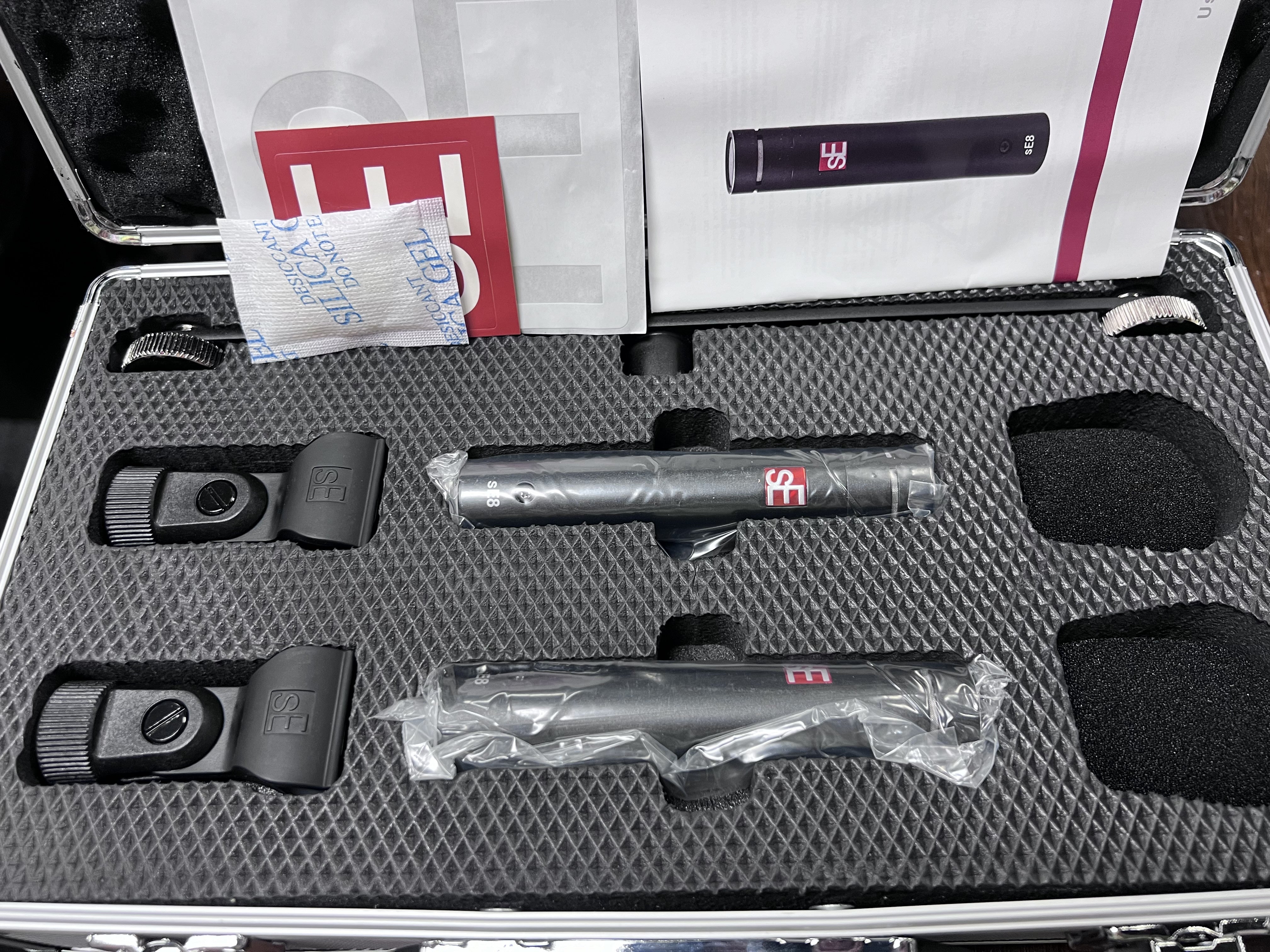

What's in the box
sE8 microphone
mic clip (with thread adapter)
wind screen
