Description

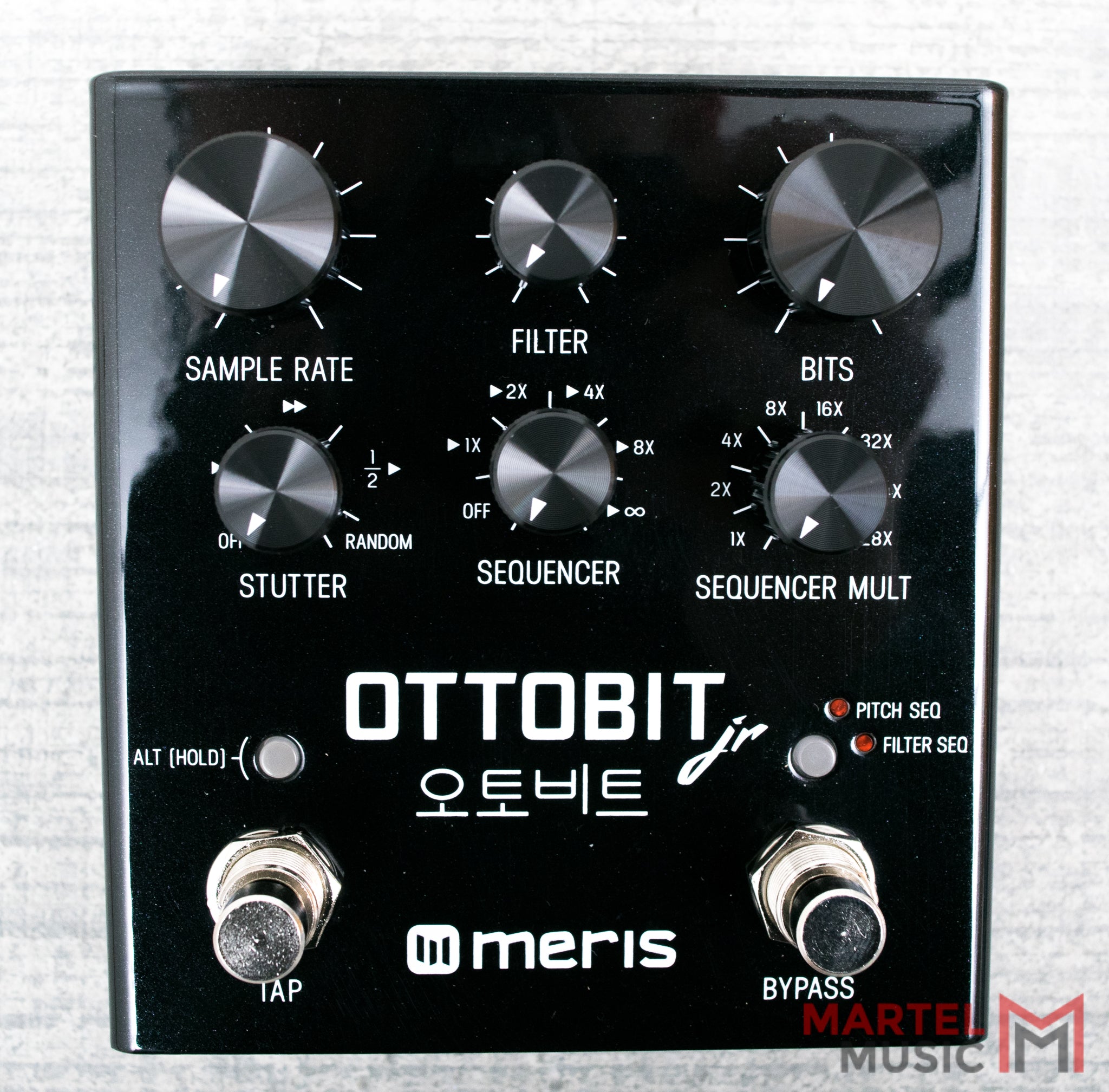

Ottobit Jr.
AUDIO IN >> VIDEO GAME OUT
A Maniacal Little Machine, inspired by vintage gaming consoles.
GREETINGS, PROGRAMS
"You want games? I'll give you games."
To call it a bitcrusher would be an insult. The triggered stutter and pitch/filter/crush sequencers take you to side scrolling, coin collecting maze worlds. Add in a resonant low pass that competes with the best analog synths and grandpa SID would be proud.
- Handcrafted Algorithms
- Variable Sample Rate and Bit Crushing
- Vintage Synth inspired Low-Pass Filter
- Triggered Stutter Effects
- Sequencer module for Pitch, Filter or Decimation pattern sequencing
- Tap Tempo for Sequencer and Stutter
- Stereo input and output
- Switchable input/output headroom level for Guitar, Synthesizer or Line levels
- Expression pedal control over all parameters simultaneously
- Presets available via external 4-Preset switch or MIDI
- MIDI in/out over TRS via the EXP jack
- Remote Tap Tempo Switch capable via the EXP jack
- Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
- Premium Analog Devices JFET input section
- Color – glossy black with subtle flake
- Designed and built in Los Angeles, California U.S.A.
- Premium quality 24 bit A/D and D/A
- 32 Bit floating point DSP hardware
- Premium low noise Analog signal path throughout
- Analog Devices JFET input circuitry
- Selectable True Bypass (Relay) or Analog Buffered Bypass
- 150 mA total power consumption
- Durable black powder coat with fine metal flake
- Current draw – <150 mA
- Dimensions – 4.25″ wide, 4.5″ long, 2″ tall
