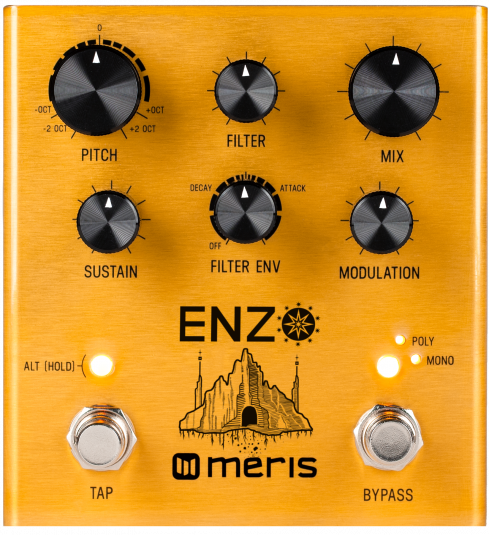

Enzo -

UNVEIL THE UNIVERSE WITHIN

Multi-Voice Instrument Synthesizer

• Colossal Multi-Voice Dual Oscillator Synth architecture with selectable waveforms
• Two Tap Delay with Time, Feedback, Modulation, and special two stage level control
• Three Synth modes: Poly Synth, Mono Synth, and Arpeggiated Synth
• Two Distinct Tunable Envelope Types: Triggered and Envelope Follower
• Tunable Portamento Time for smooth transitions between synth notes and pitch shifts
• Sustain control for extending your volume envelope all the way to endless synth hold
• Adjustable Compressor with Threshold and Mix for your input signal (Dry mode)
• Custom 6 mode filter with frequency, bandwidth (resonance), and envelope
• Wide ranging Ring Modulation with ability to assign envelope control
• Digitally controlled Analog mix control
• Stereo input and output
• Switchable input / output headroom level for Guitar or Synth / Line level
• Expression pedal control over all parameters simultaneously
• Presets available via external 4-Preset switch or MIDI
• MIDI in/out over TRS via the EXP jack
• External Tap Tempo over TRS
• MIDI beat clock synchronization
• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
• Premium Analog Devices JFET input section
• Color – translucent coat of vibrant gold over brushed aluminum
• Designed and built in Los Angeles, California U.S.A.

SPECS:

• Premium quality 24 bit A/D and D/A
• 32 Bit floating point DSP hardware
• Premium low noise Analog signal path throughout
• Digitally controlled Analog Dry path for wet/dry mix
• Analog Devices JFET input circuitry
• Selectable True Bypass (Relay) or Analog Buffered Bypass
• Durable translucent coat of vibrant gold over brushed aluminum
• Current draw < 150 mA
• Dimensions – 4.25″ wide, 4.5″ long, 2″ tall
