Ambient Echo Machine

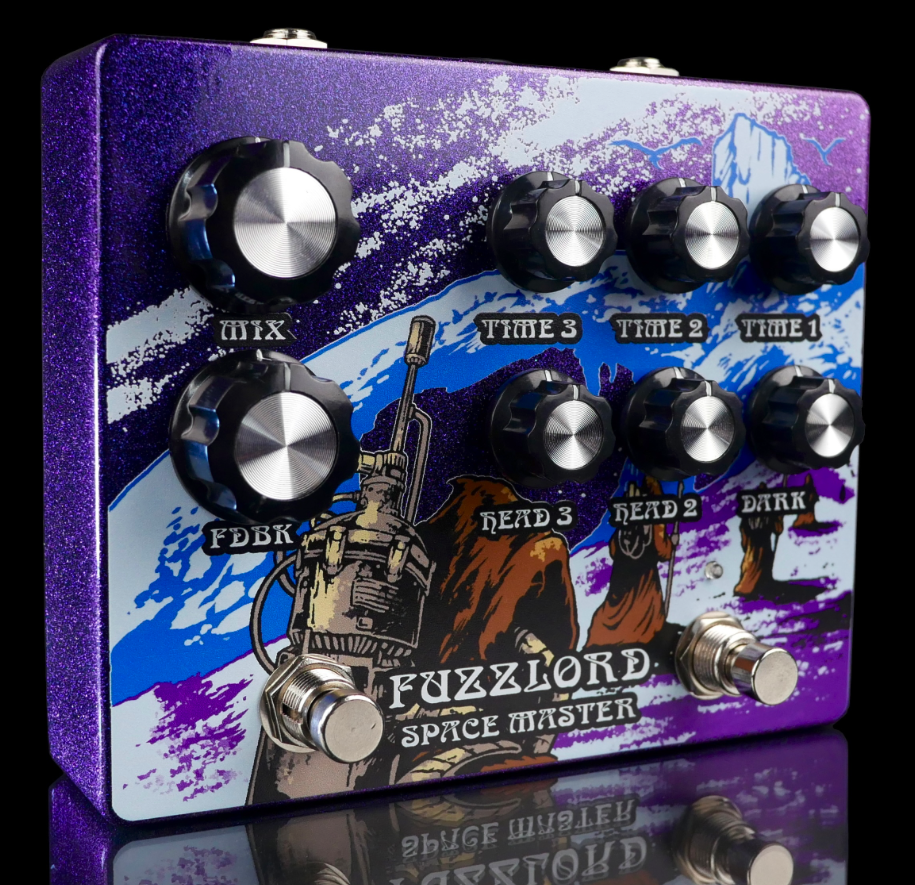

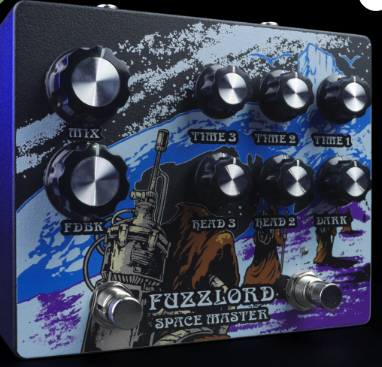

The Space Master is an ambient digital echo inspired by the classic tape based echo units. 3 delay stages stacked giving you the ability to change the time between each “tape head” creating short galoping delay all the way to longer spacious washed out reverb tones. The Space Master goes into self oscillation at about noon on the feedback control and is the perefect addition to your amibent/lo-fi sound.
Standard Feedback and Mix controls similar to our Dark Master Echo, with the addition of 3 different Time controls for the delay chips, a Dark control to filter out high end of the echo signal, and two volume controls labeled Head 2 and Head 3 to adjust how much of the 2nd and 3rd chip come through at the output. These both have a bit of boost available to them and at max can overdirve the signal. A second momentary footswitch on the pedal acts as a reset to stop self oscillation and control the amount of feedback.
Control
Mix: Control how much wet signal.
FDBK: Adjust how many repeats and oscillation.
Time 1, 2, 3: Adjust the delay time for each “head”
Dark: Treble filter for echo path.
Head 2: Volume control for second echo stage.
Head 3: Volume control for 3rd echo stage.
Specifications
Power: Use only a 9v center negative 2.1mm power supply. We recommend using an isolated power supply to avoid noise issues.
Dimensions: 145 x 121 x 39mm
Switching: True bypass soft switching
Current Draw: 85mA
