Complete Tonal Control

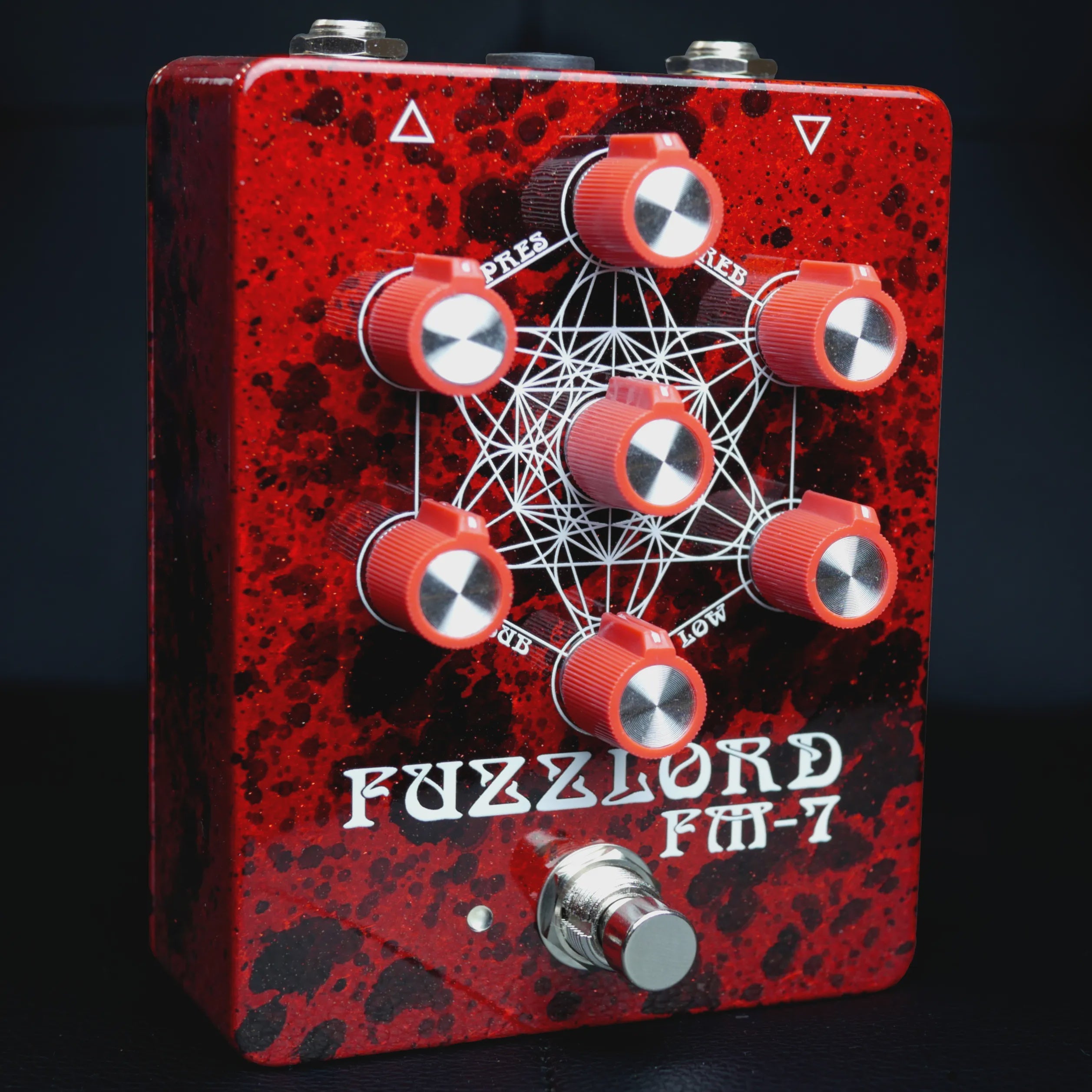

The FM-7 provides complete control over your instruments tonal range for your guitar or bass. 6 bands of active gyrator based EQs that can boost or cut each band +/- 15dB with an overall level control to finely tune your tone. The FM-7 is the perfect addition to your pedalboard to tighten up your sound and shape the sound of your dirt pedals.
Designed to work with hi gain pedals the FM-7 can take different types of Fuzz/Distortion/Overdrive and completely transform the overall tonal character. The 6 bands of EQ have been tuned to work well with down tuned instruments.
Controls
Lower row
B1: 100 Hz
B2: 180 Hz
B3: 420 Hz
Upper Row
B4: 720 Hz
B5: 1.5k Hz
B6: 3k Hz
Specifications
Power: Use only a 9v center negative 2.1mm power supply. We recommend using an isolated power supply to avoid noise issues.
Dimensions: 120 x 94 x 42.5 mm
Switching: True bypass soft switching
Current Draw: 45mA
