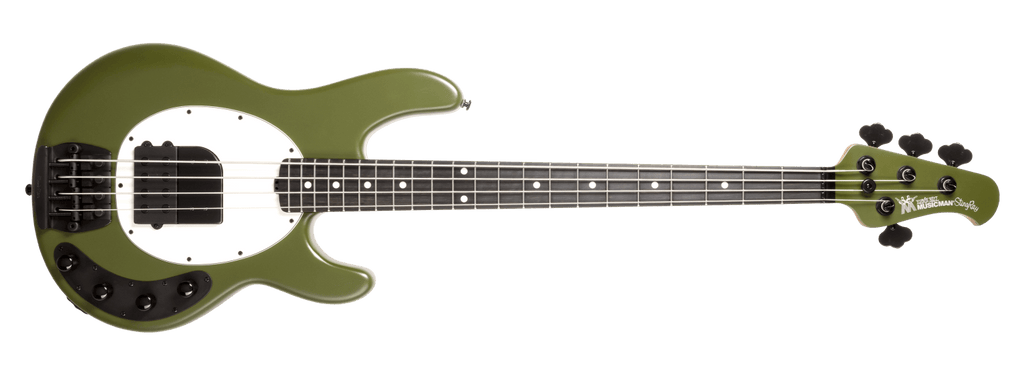

This limited-edition Tim Commerford Artist Series StingRay Bass in Xavier Green, developed in collaboration with legendary bassist Tim Commerford of Rage Against the Machine, Audioslave, and 7D7D, celebrates his long-standing connection with Ernie Ball Music Man. With only 50 units available, each featuring a numbered custom neck plate, this bass combines an ash body, roasted maple neck, and ebony fretboard for rich, balanced tone. Equipped with a neodymium Music Man humbucker, 18-volt preamp, and 3-band EQ, it offers impressive tonal versatility, while the string-through-body bridge with a mute kit enhances sustain and control. Black hardware and a custom, height-adjustable “finger ramp” thumb rest – inspired by Commerford’s playing style – add functionality and comfort.
Model: Tim Commerford Active Full-Scale
Color: Xavier Green
Neck: Roasted Maple w/Ebony Fretboard, Matching Headstock
Pickguard: Parchment
Hardware: Black
Build Code
216-TC2-51-06
Specifications
Tim Commerford Active Full-Scale
Model
Tim Commerford Active Full-Scale
Size13-1/2" wide, 1-5/8" thick, 44-7/8" long (34.3 cm wide, 4.1 cm thick, 114.0 cm long)
Body Wood
Ash
Body Finish
Matte polyester
Body Colors
Xavier Green
Bridge
Music Man® black plated, strings-thru-the-body & hardened steel bridge plate with vintage black plated steel saddles and adjustable mute pads
Pickguard
Parchment
Scale Length
34" (86.4 cm)
Neck Radius
11" (27.9 cm)
Headstock Size
Only 8-3/4" (22.2 cm) long
Frets22 - High profile, wide, Stainless Steel
Neck Width
1-11/16" (42.9mm) at the nut, 2-1/2" (63.5 mm) at the last fret
Neck Wood
Select Roasted Maple
Fingerboard
Ebony
Fret Markers
5/16" Dot Inlay
Neck Finish
Gunstock oil and hand-rubbed special wax blend
Neck Colors
Matching Headstock
Tuning Machines
Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod
Adjustable - no component or string removal
Neck Attachment
5 bolt, sculpted neck joint
Electronic Shielding
Black plated aluminum control cover
Controls
3-band active preamp with 18 volts of headroom; vol, treble, mid, bass
Pickups
Single Humbucking with Neodymium magnets
Strings
50w-70w-85w-105w (Regular Slinky Bass #2832)
