Description

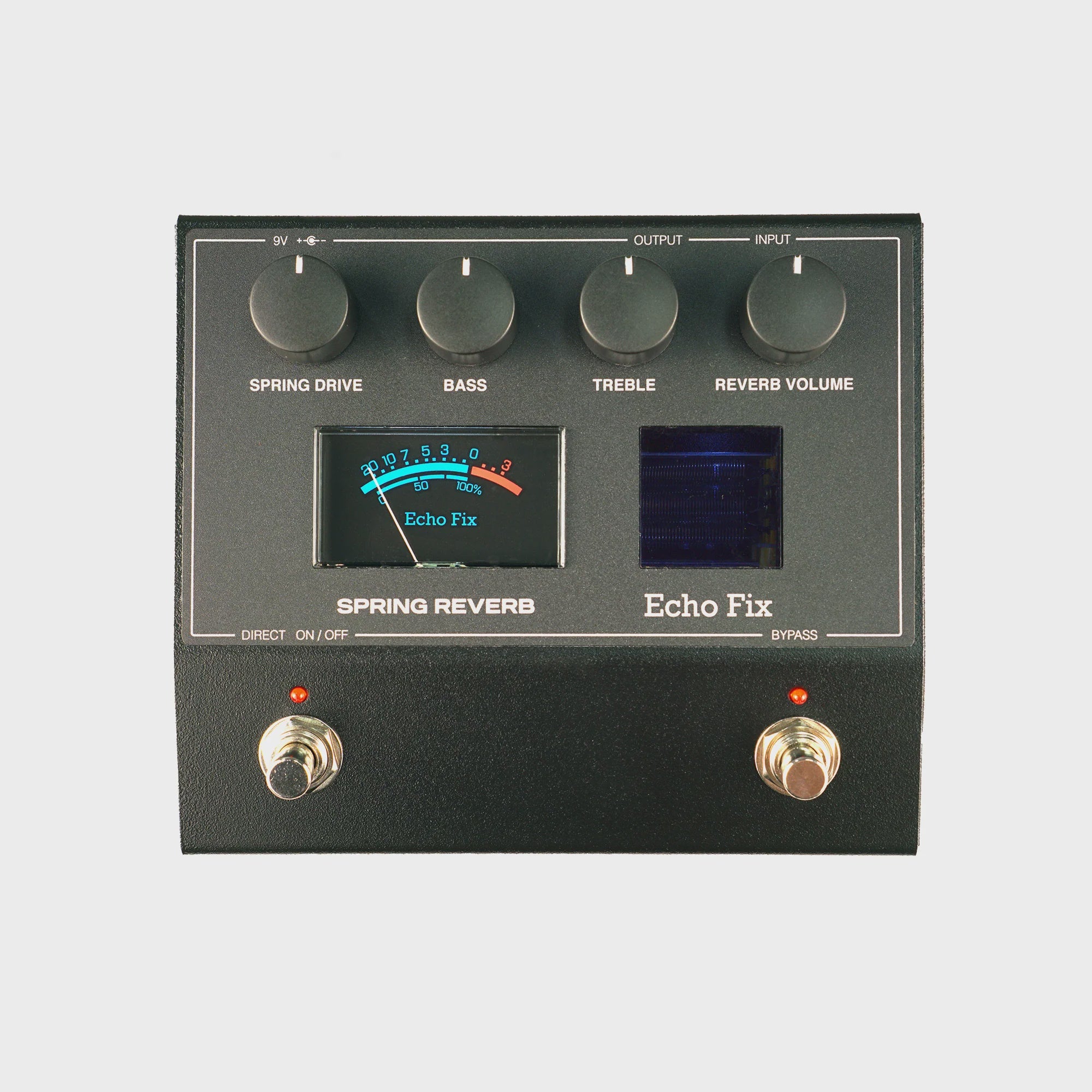

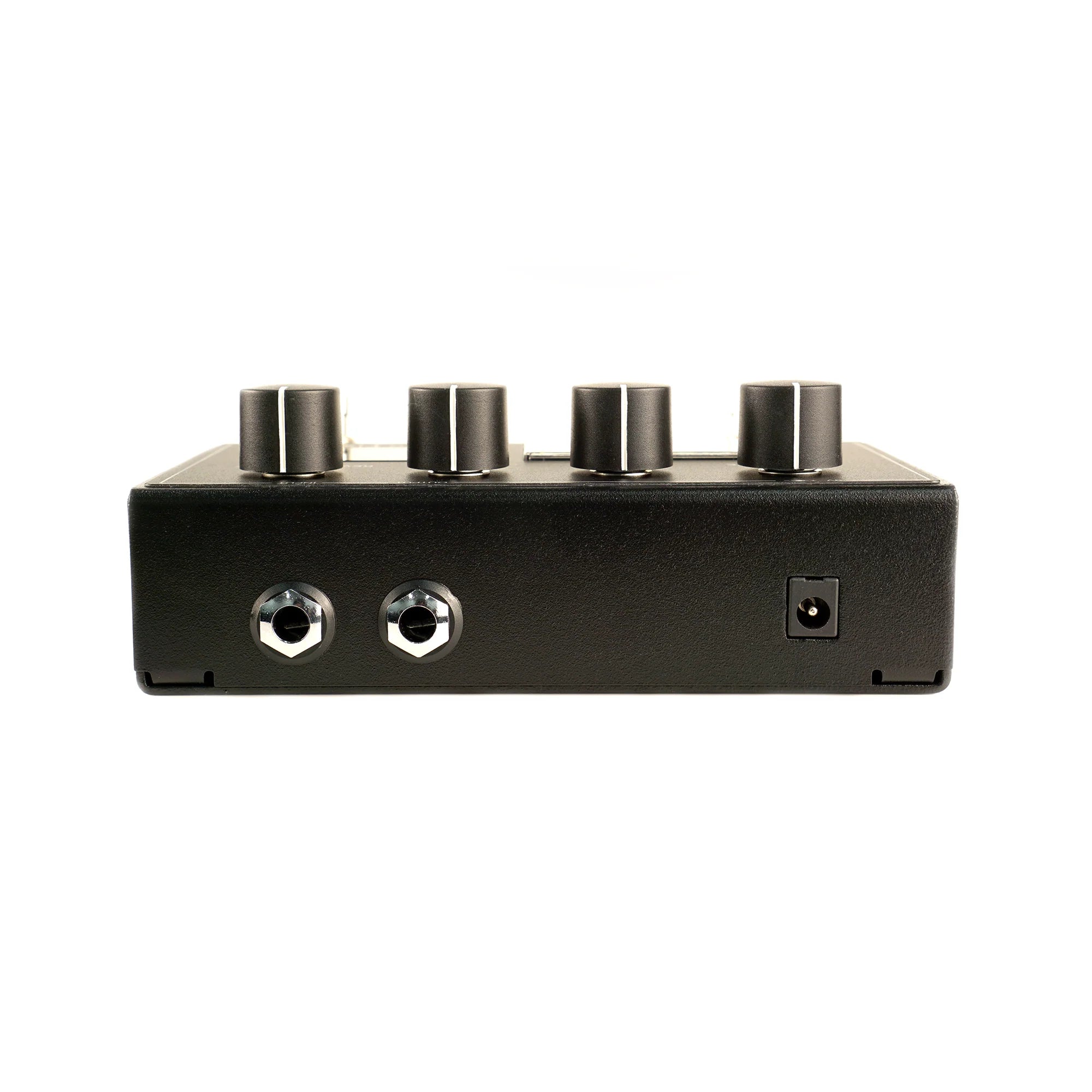

Echo Fix EF-P2 Spring Reverb Pedal
The Echo Fix EF-P2 is a real Spring Reverb pedal that packs a huge sound into a small enclosure. The EF-P2 features a three-spring reverb tank, adjustable Spring Drive, Bass / Treble EQ controls, and Reverb Volume control. With a footswitch for reverb bypass and also a direct signal mute footswitch, the EF-P2 can also be used as an outboard effect in recording studios. The EF-P2 can accept audio signal from synths and other audio devices, not just guitar.
Features
- Real spring reverb pan
- 100% Analog Signal Path
- Spring drive control
- Bass control
- Treble control
- Reverb Level Control
- Soft momentary switching for noiseless Bypass and Direct Mute switching
- Increased internal power supply voltage rails for increased dynamic range
- Illuminated reverb tank viewing window
Power - 9VDC Centre Negative
Current - 200mA minimum
Input Impedance - 1MΩ
Output Impedance - 1KΩ
Dimensions - 160mm x 130mm x 60mm (6.29" x 5.11" x 2.36")
