Description
Started out as a vintage 70s OTA design, and it took a left turn. With experimentation and passing around the proverbial dish to taste, it morphed into a chewy and swirly beauty that can do all from subtle thickness, to wide open super vowel funk!
The Phaser MK1 is equipped with USA made Switchcraft jacks for reliable operation, and our tried and true click-less bypass system. This circuit allows for easy and silent effect switching, but also momentary operation for when you just need a little.
Handmade in New Haven, CT.

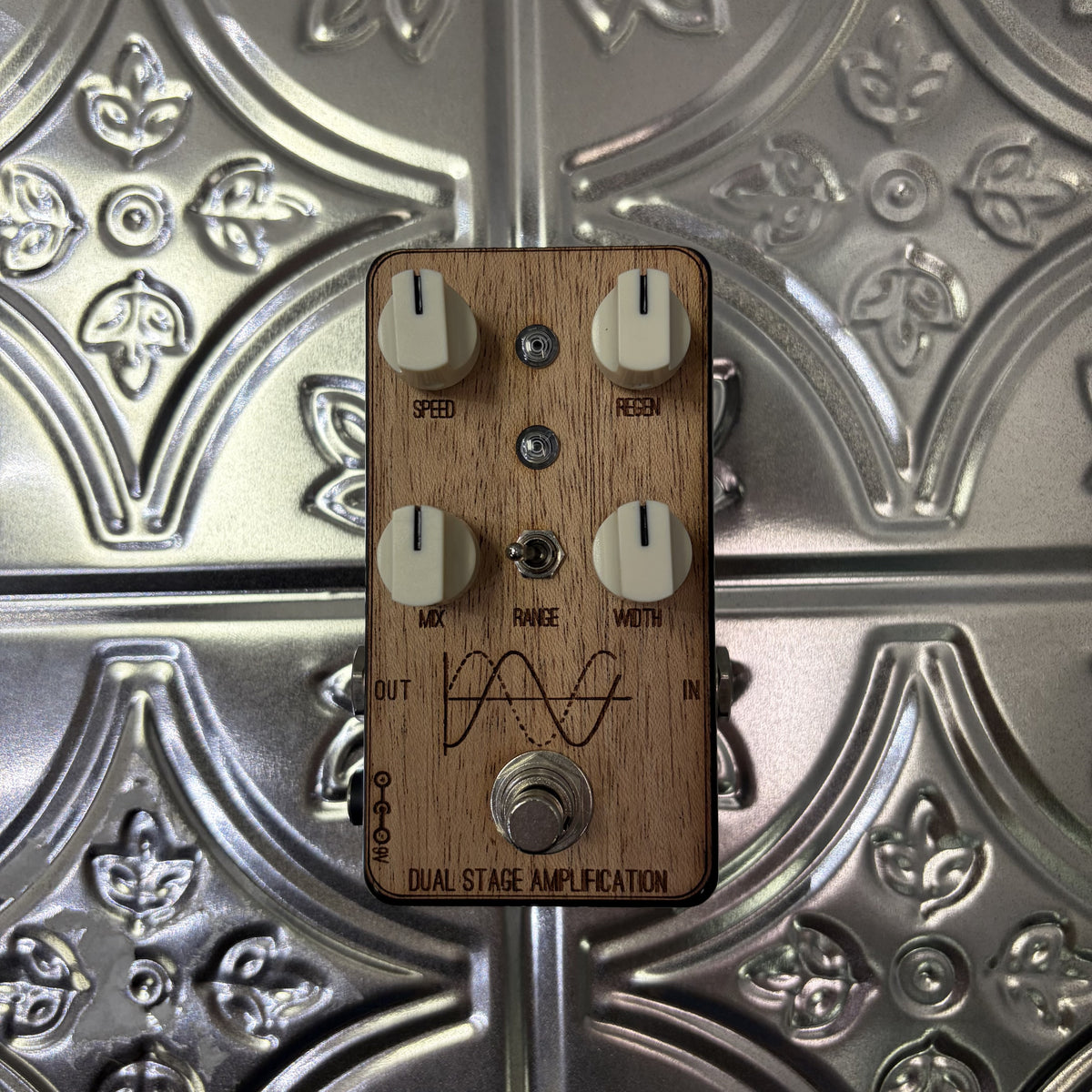

- Controls: Speed, Regen, Mix, Width
- Range switch: shifts the Speed knob's entire sweep — slower or faster LFO rates
- Jacks: USA-made Switchcraft
- Bypass: click-less relay (latching & momentary)
- Pedal Board Mode: optional auto-engage on power-up
- Power: 9V DC center-negative, 2.1mm barrel — no battery (9V max — do not exceed)
- Current draw: 56mA
- Enclosure: 4.43″ × 2.38″ × 1.22″ — 12.2 oz
