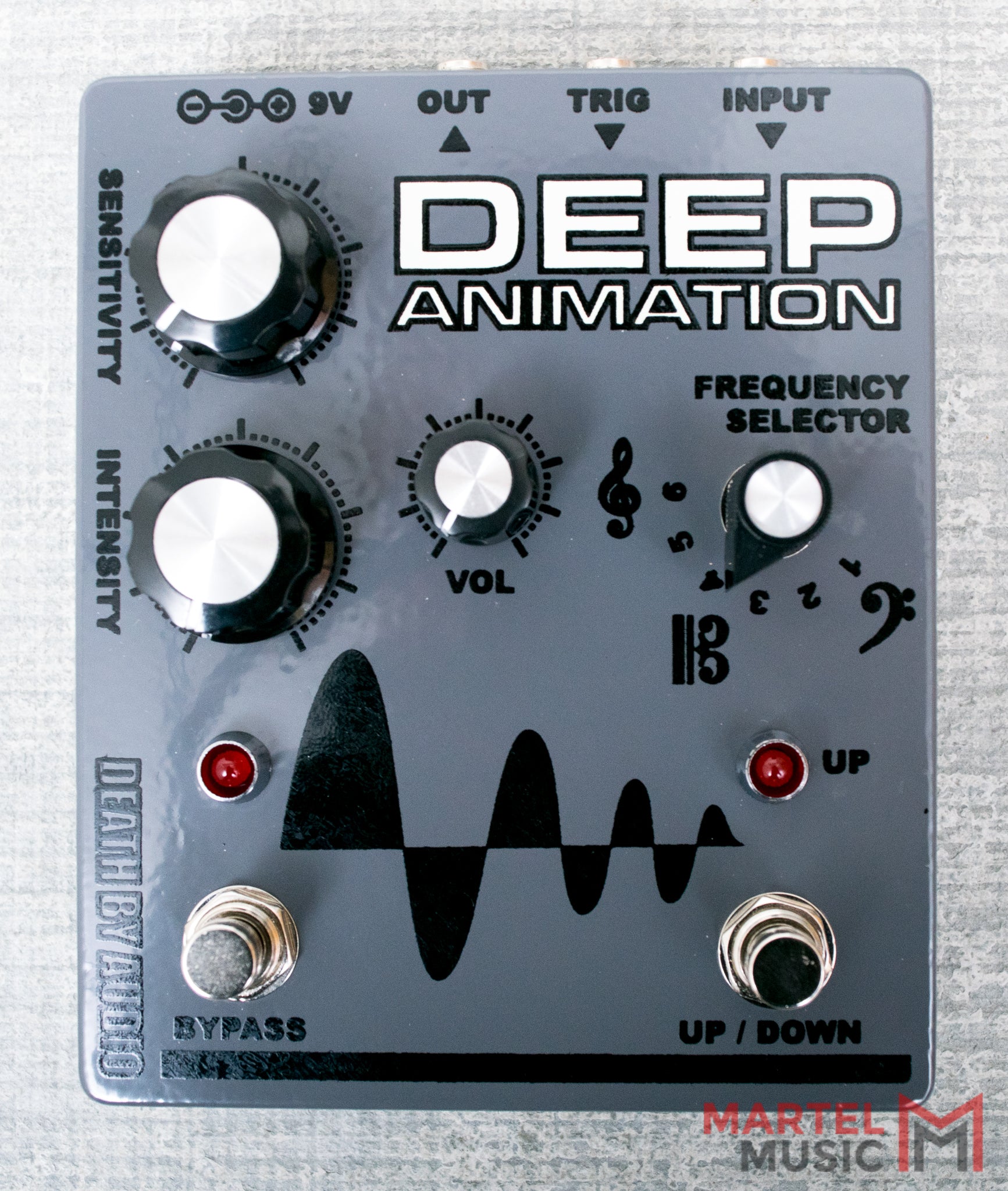

Input: Plug an instrument in to this jack.
Trig: Plug another instrument in to this jack to trigger the filter sweep with that instrument.
Out: Connect this to the amplifier.
Sensitivity: Determines the point at which the filter kicks in and how dynamic the filter shifts to the input amplitude.
Intensity: Simultaneously blends in the resonance, amount, and grit of the filter.
Vol: Adjusts the output volume of the DEEP ANIMATION.
Frequency Selector: Selects the frequency range of the filter.
Bypass: True bypass the effect.
Up / Down: Controls the direction the filter travels when decaying after being triggered. UP sweeps the frequency from higher frequencies to lower ones.
Additional Features: There is a subtle light which indicates when the trigger is being triggered behind the main bypass LED.
