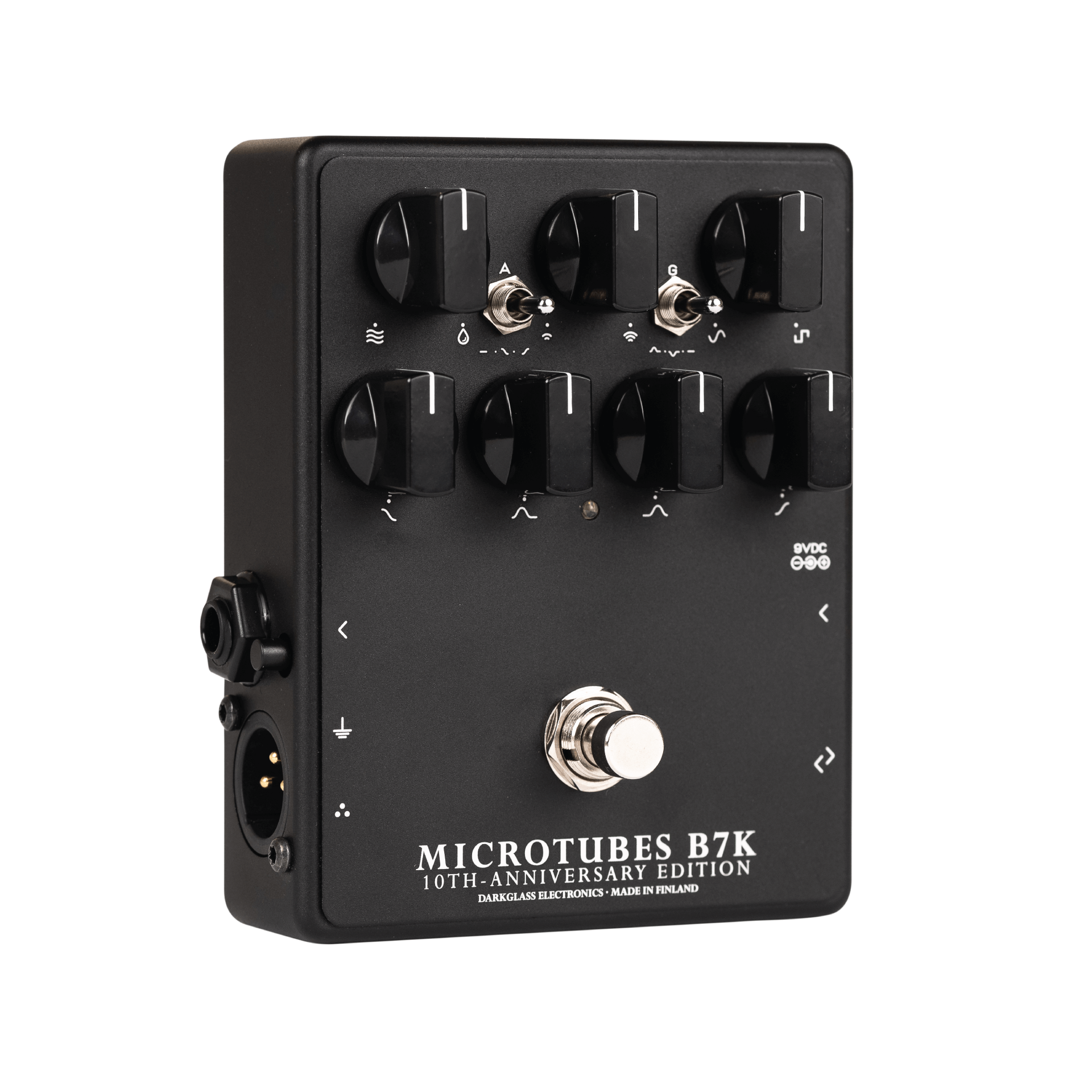

MICROTUBES B7K “10TH ANNIVERSARY” LIMITED EDITION
This limited edition is a celebration of the pedal that got us started - this is a tribute to every bass player that believed in the adventure of cutting into the mix and a commendation for the incredible support and loyalty that we have received since our humble beginnings.
Features
Level
Sets the volume of the overdriven signal.
Drive
Sets the amount of saturation in the overdriven signal.
Blend
Mixes the clean input signal with the overdriven signal. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.
Grunt Switch
Sets the amount of low frequency content to saturate by selecting between three different bass boost levels before the clipping stage.
Attack Switch
Sets the amount of treble content to saturate: The "Boost" setting emphasizes the treble content extra clarity and presence. The "Flat" position leaves this register untouched while the "Cut" position will reduce the amount of high frequencies being saturated.
Low
+-12dB @ 100Hz
Low Mid
+-12dB @ 1kHz
Hi Mid
+-12dB @ 2.8kHz
Treble
+-12dB @ 5kHz
Direct Output
A balanced version of the ¼” output, useful for running into PA’s or studio mixing consoles.
DIMENSIONS
94x120x46 mm (3.70x4.72x1.81 in)
WARNING
The Microtubes B7K has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
