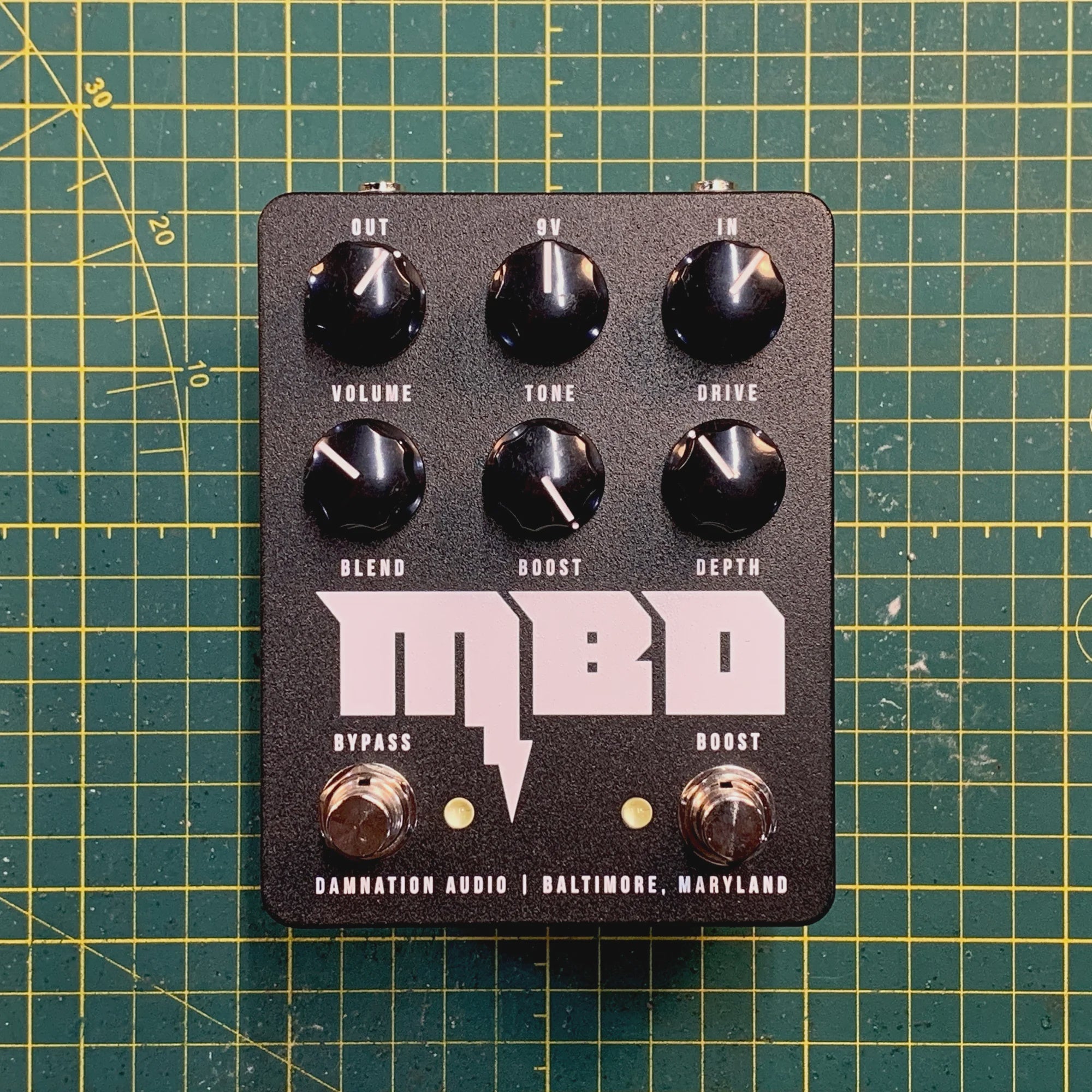

Damnation Audio MBD | Bass Overdrive & Distortion Pedal

Ultimate Versatility Uncompromised Tone

The Damnation Audio MOSFET Bass Distortion, simply referred to as the MBD, is the long awaited follow up to our original Damnation Audio MBD-1 and MBD2 bass overdrive and distortion pedals. The heart of the MBD is the same bass-loving distortion as the original, but with a few enhancements customers have longed for.

Those enhancements include a boost footswitch with a boost control providing over 30dB of additional gain and the inclusion of our newly designed contoured clean blend. The amazing sounding clean blend already smooth and precise depth and tone controls leads us to confidently state that the MBD is one of the best bass overdrive and distortion pedals on the market.

Friends don’t let friends play clean bass!

CONTROLS

Drive: Controls the amount of gain in the distortion channel. This control goes from a smooth and transparent low gain overdrive to a screaming bass distortion.

Volume: Controls the output level of the distortion channel.

Tone: Tilt-style tone control for the distortion channel centered around 600Hz.

Boost: Adds additional boosted signal into gain stages. Does not affect the clean blend circuitry. Takes the MBD from distortion to close to fuzz territory (with the help of the depth control).

Blend: Controls output level of parallel contoured clean channel. This is your clean tone but with an emphasis on low end and de-emphasis on disruptive mids and highs.

Depth: Controls the amount of low end injected into the distortion channel. Depth settings below 12:00 will tighten up the distortion to retain clarity with drop-tuned basses without sacrificing low end. Higher depth settings will thicken up bright basses and add mass to standard-tuned instruments.

Power

Use only 9VDC 2.1mm center negative (boss-style) power adapters. Isolated pedal specific power supplies are highly recommended. Damnation Audio pedals are designed for maximum headroom and ideal performance with a 9V supply. Going above 9VDC may damage your pedal and void any warranties. Damnation Audio pedals do not accept 9V batteries.

In the interest of continuous improvement, all specifications are subject to change without notice.
