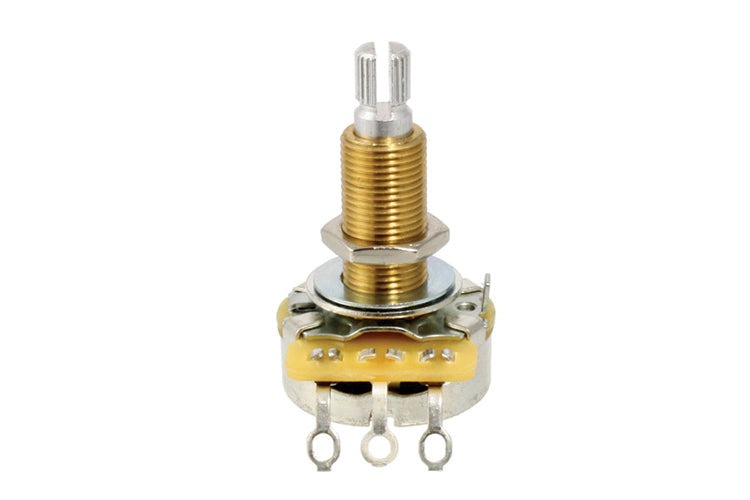

CTS 500K Long Split Shaft Audio Potentiometer

CTS brand 500K audio taper pot. 3/4 inch threaded bushing with 3/8 inch diameter. 24 spline split knurled shaft. Includes nut, lock, and dress washer. Popular replacement pot for many Gibson® Les Paul® guitars.

Specifications:

• Ohm rating: 500k - 15% tolerance
• Split, and knurled 1/4” shaft with nut
• Lock & Dress Washer
• Brass bushing w/ aluminum shaft
• Suitable for either volume or tone controls - 15% Tolerance
• Threaded shaft is 3/4" in length and 3/8" in diameter
• Overall Dimensions. 1-9/16" x 7/8" at 16 gram
• BULK Pack 20 pcs

Imperial (U.S. sizing) NOT compatible with import guitars using metric components. Each EP-0686-000 pot includes a flat washer, lock washer, and two hex mounting nuts for custom height adjustment on a pickguard or control plate.
