Coppersound Daedalus Reverb


Price:
Sale price$199.00

Description

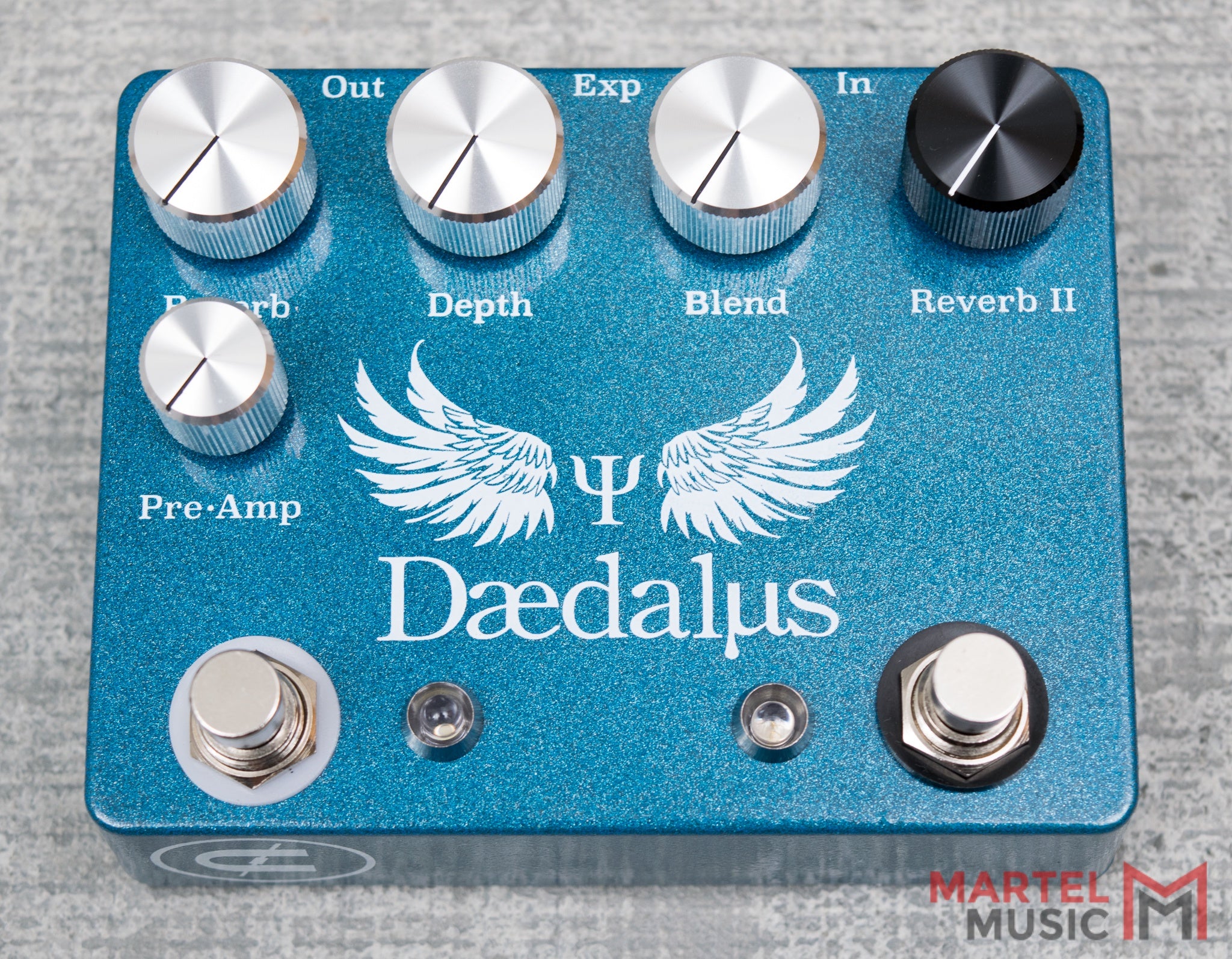

Coppersound Daedalus Reverb

2 Reverbs on the fly!

Sounds from the shores of Crete.

Much like the engineer that it’s name derives from, Daedalus was methodically designed and crafted. As opposed to using a chip, we wanted to built the reverb off the newest Belton 3 brick. So that’s where we started. In it’s infancy, it was a simple one knob reverb. Over several months, Daedalus grew it’s wings. The addition of the Depth knob was the first step. We originally discussed implementing a shimmer feature in the pedal. This idea was replaced with an expression jack. This jack allows the user to insert any pedal into the decay of the reverb using a TRS Y cable(not included). The Blend knob was then added to give the user control over the amount of external effect being placed into the decay. The Pre Amp is the “special sauce” here. It has the ability to add volume to whatever pedal is in the expression loop. Enough volume that the external pedal is almost as loud as the initial reverberated note. This can be very useful for swells and experimental players. The Pre Amp knob also adds volume to the decay and the length of the decay. Making it a dual purpose knob. The last thing left was to fine comb the wings. This was achieved by adding the Reverb II knob. This addition allows for two separate reverb levels of independent footswitches. Set one for shorter, traditional reverb sounds and the second for longer, drawn out reverb sounds. Both Reverb knobs work with the rest of the controls.

REVERB – Controls the overall amount of reverb. Similar to a wet/dry mix knob, only the initial note is always heard.

DEPTH – Controls the length of the reverb decay.

BLEND – Determines how much of the external pedal, that’s inserted into the FX is heard.

REVERB II – Controls the overall amount of reverb when the right footswitch is engaged.

PRE AMP – Increases the size of the reverb even further. Also, gives extra volume to any effect that’s placed in the FX loop.

EXPRESSION (FX LOOP) – Plug in a TRS splitter cable to place any effect into the decay of the reverb. With a volume pedal in the loop, the treadle now controls the reverb knob. The reverb knob setting now becomes the treadle toe down position. TIP = Send, RING = Return

9V – Standard 5.5mm x 2.1mm center negative power supply. Daedalus has internal polarity protection. 9 VOLT MAX.
