Description

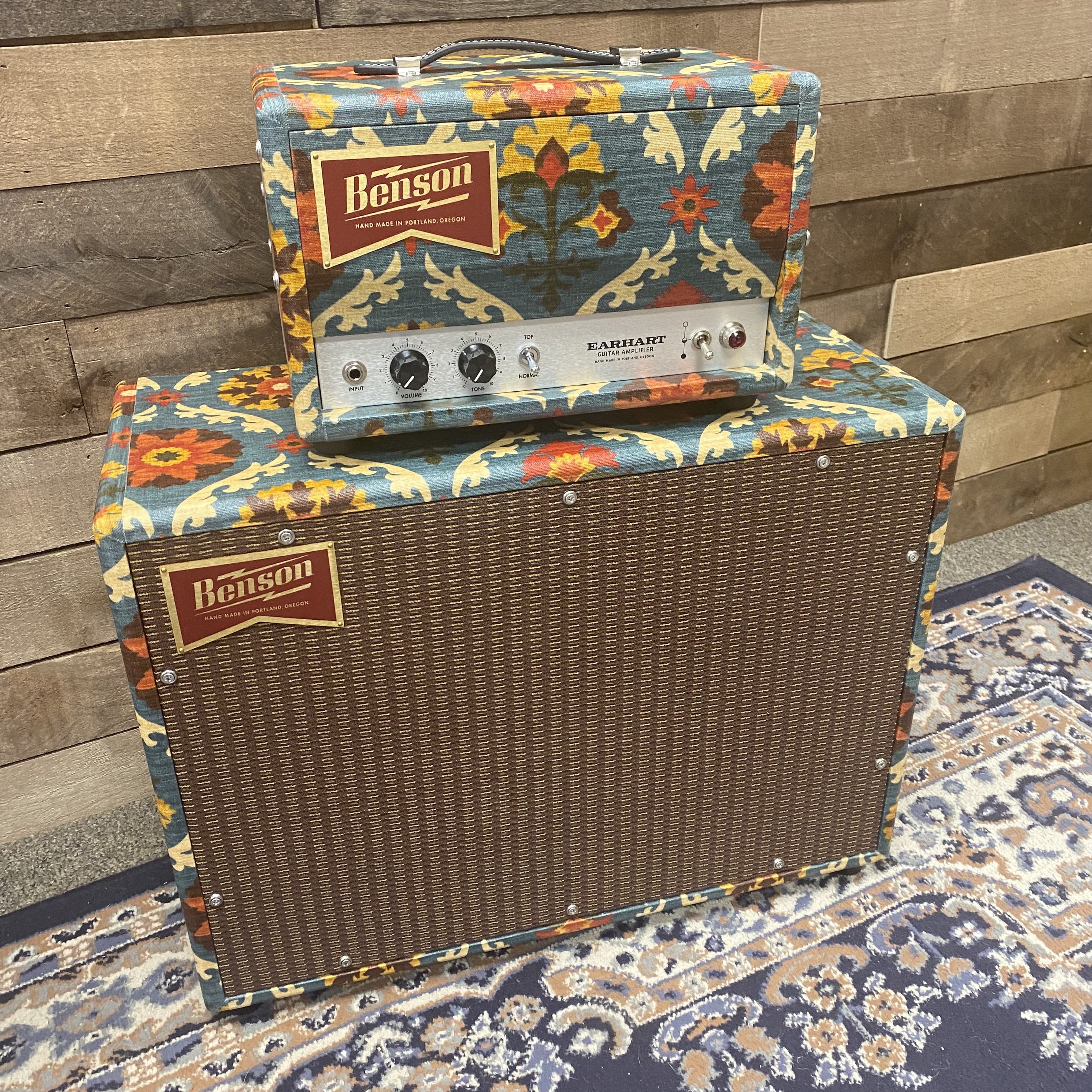

Benson Amps Earhart Head and 1x12 Cabinet in Aunt Gertie w/ Oxblood Grille.
The 15 watt Earhart is our side hug to the top boost style of amplifier. Not being into the whole clone thing, we took part of the tone stack from the original 60s design, modified it, and dovetailed into the Monarch platform retaining some of the trickery that contribute to that platform’s touch sensitivity and harmonic characteristics. The Earhart also utilizes EL84 power tubes biased into class A. The result is a dream come true for those seeking a top boost type sound with better clarity, harmonics and a three dimensional feel.
The Earhart features Volume, Tone, and a Normal/Top Boost switch that adds to the versatility of the circuit. Normal takes away the chime and make the Earhart behave as a well balanced very good sounding amp much like the Monarch design. The top boost setting adds the chime on top. In both modes the tone knob control controls the balance between bass and treble frequencies…utilizing that in tandem with the volume can control the “tilt” of the frequencies allowing for many different sounds from a two knob amplifier. The midrange is very slightly scooped, but not as scooped as the original top boost style amps lending a satisfying sweetness to the sound.
Specs
-
2 x JJ EL84 power tubes, 2 x JJ 12AX7 preamp tubes, 5AR4 rectifier(default)
-
13-18 watts (depending on rectifier)
-
Speaker outputs: 1 x 8 ohm, 1 x 16 ohm
Dimensions/weight
-
Head 13.5”W 8”H 8.25”D 16 lbs
-
1x12 Cabinet 17”W 18.5”H 10”D 20-23 lbs
Build
-
Point to point construction on terminal strips - no circuit, eyelet or turret board
-
Custom Soursound transfomers
-
Mallory 150M capacitors
-
Dovetailed pine speaker cabinet
-
Baltic birch head cabinet
-
Benson Custom Ceramic Speaker
