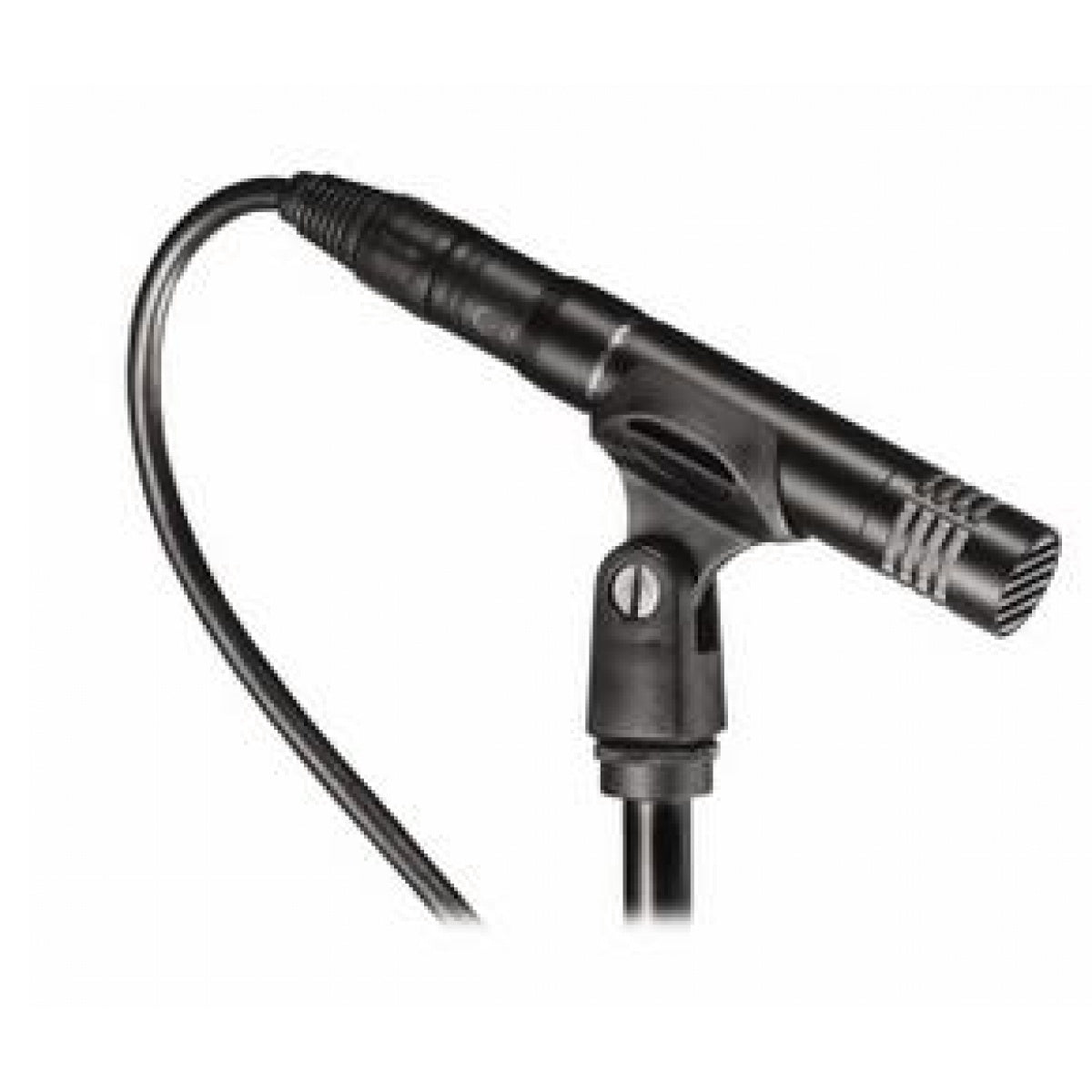

20 Series Cardioid Condenser Instrument Microphone
Excels in high-SPL applications
Ideal for acoustic guitar, overheads, piano and group vocals
Extended response for smooth, natural sonic characteristics
Low-mass element for superb transient response
Corrosion-resistant contacts from gold-plated XLRM-type connector
Rugged design and construction for reliable performance
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Ideal for home studio and live applications, the low-profile AT2021 offers an extended frequency response, high maximum SPL and wide dynamic range. The microphone is outstanding for acoustic guitar, overheads, piano and group vocals. Its low-mass element offers a superb transient response.
ELEMENT: Fixed-charge back plate, permanently polarized condenser POLAR PATTERN: Cardioid FREQUENCY RESPONSE: 30-20,000 Hz OPEN CIRCUIT SENSITIVITY: –39 dB (11.2 mV) re 1V at 1 Pa IMPEDANCE: 250 ohms MAXIMUM INPUT SOUND LEVEL: 145 dB SPL, 1 kHz at 1% T.H.D. NOISE: 19 dB SPL DYNAMIC RANGE (typical): 126 dB, 1 kHz at Max SPL SIGNAL-TO-NOISE RATIO: 75 dB, 1 kHz at 1 Pa PHANTOM POWER REQUIREMENTS: 48V DC, 2 mA typical WEIGHT: 83 g (2.9 oz) DIMENSIONS: 101.5 mm (4.00") long, 21.0 mm (0.83") maximum body diameter OUTPUT CONNECTOR: Integral 3-pin XLRM-type ACCESSORIES FURNISHED: Stand clamp; soft protective pouch
