• The price/performance standard in side-address studio condenser microphone technology

• Ideal for project/home-studio applications

• High SPL handling and wide dynamic range provide unmatched versatility

• Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response

• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

• Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone

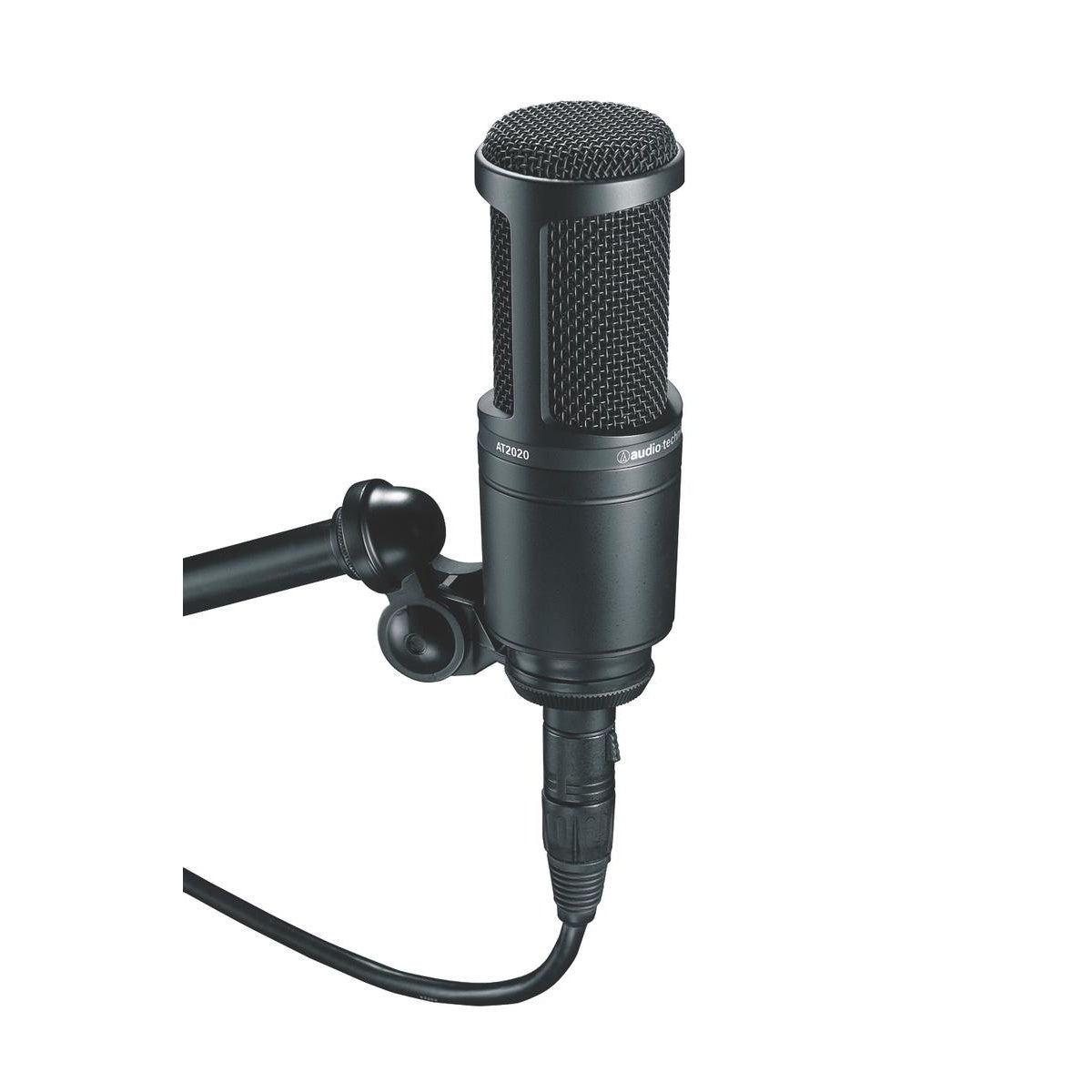

Audio-Technica’s stringent quality and consistency standards set the AT2020 apart from other mics in its class. Its low-mass diaphragm is custom-engineered for extended frequency response and superior transient response. With rugged construction for durable performance, the microphone offers a wide dynamic range and handles high SPLs with ease. The AT2020: the new standard for affordable side-address studio condensers.

ELEMENT: Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 20-20,000 Hz
OPEN CIRCUIT SENSITIVITY: –37 dB (14.1 mV) re 1V at 1 Pa
IMPEDANCE: 100 ohms
MAXIMUM INPUT SOUND LEVEL: 144 dB SPL, 1 kHz at 1% T.H.D.
NOISE: 20 dB SPL
DYNAMIC RANGE (typical): 124 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 74 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 48V DC, 2 mA typical
WEIGHT: 12.1 oz (345 g)
DIMENSIONS: 6.38" (162.0 mm) long,
2.05" (52.0 mm) maximum body diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
