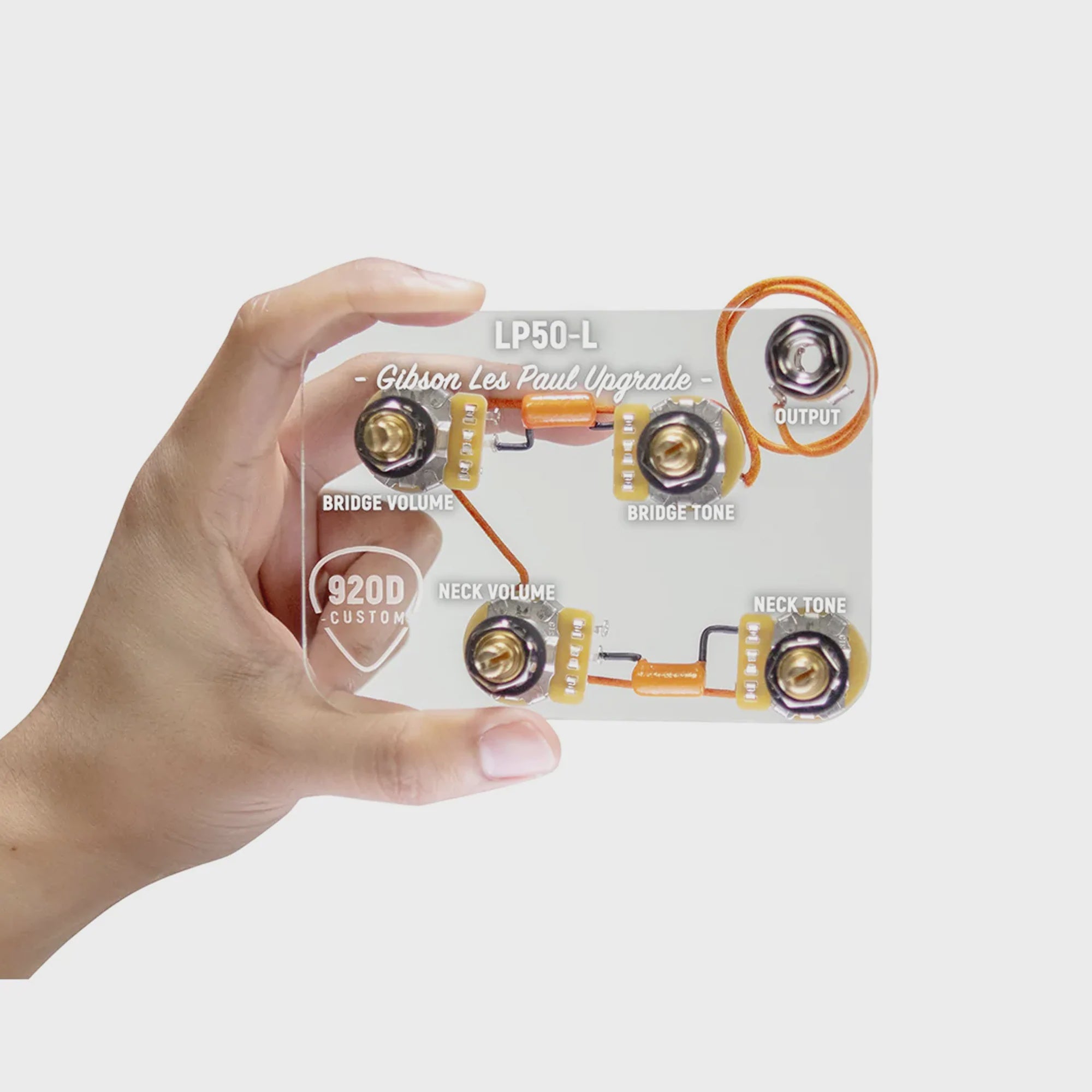

920D Custom Les Paul® Wiring Harness Upgrade with Long Shaft Pots
Les Paul® Wiring Harness Upgrade - with Long Shaft Pots
Our Custom Les Paul® Wiring Harness is built to easily drop into your guitar and totally transform your tone. With genuine Orange Drop capacitors, your guitar will have the classic sound of a vintage Les Paul®. The wiring scheme provides a tight, transparent tone. Unlike modern wiring schemes, it features a reduced treble cut, when rolling back the volume control. The highs sound clearer, especially with the volume pot rolled back. This harness effectively gives you a treble bleed kit function on each volume pot, without adding the extra caps and resistors. If you are looking to clean up your tone and let your pickups sing through, then the LP50-L is for you.
- 4 - 920D Custom 450G Series 500K Pots (Long Shafts)
- 2 - .022 Orange Drop Capacitor by Sprague Electric
- 1 - Pure Tone Output Jack
- 920D Custom Signature Wiring by Gavitt Wire
- Bridge / Neck
920D Custom Signature Wiring
All 920D Custom products are highlighted with our signature orange wire. Gavitt Wire, a leading producer of premium guitar wire, has agreed to custom manufacture our signature cloth covered pushback wire, and we believe it is the perfect choice for hotrodding your guitar. The wire is built with an outer waxed cotton layer and an inner Celanese braid that provides impressive ruggedness while still maintaining a 22 gauge thickness. Limiting the amount of wire on each build compliments your choice of pickups by creating the perfect balance between capacitance and resistance.
920D Custom 450G Series Potentiometers
Our pots are manufactured by CTS to our exact specifications and are metered for accuracy before being used in any 920D Custom gear.
We specify a 10% audio taper, accompanied with a low rotational torque rating of 0.50-2.00 in.oz (compared to the industry standard 0.75-6.00 in.oz rating) to provide a buttery knob sweep.
We hold potentiometer tolerances to ±10%. The industry standard is ±20%. Tightening potentiometer tolerances will help you accurately shape your tone.
Pure Tone 1/4" Output Jack
We exclusively use Pure Tone output jacks in all builds. Why? Because they're unquestionably better than the old, industry standard. Period.
We've all heard the crackle of a weak connection caused by pressure grounds. This is due to the old style jack only having 1 squared-off point of contact trying to meet a rounded quarter inch plug. Pure Tone has completely changed that.
Pure Tone's multi-contact quarter inch output jack has 4 rounded contact points that hold the quarter inch plug firmly in place. With 4 times the contact points, all of the dreaded cracks, snaps, and pops are gone for good. Trust us, the second you plug into this jack, you'll never want to go back.
Sprague Orange Drop Capacitors
We've used Sprague Orange Drop Capacitors in our builds since day one. Orange Drop Polyester Film / Foil Capacitors are wound from the most reliable polyester film and aluminum foil available and are protected by a rugged conformal coating of orange epoxy.
All of that to say, these capacitors do a tremendous job of warming up your tone and taking away some of the bite of an overly bright sound. Like our potentiometers, these capacitors are held to a ±10% tolerance.
5-Way Super Switch
We built our S5W Wiring Harness with a 5-Way Super Switch. It shouldn't come as a surprise that these switches are well known for being super durable, noise-free, and allowing a variety of mods.
Hand-Built In The U.S.A.
All 920D Custom creations are hand-built by experienced technicians at our shop in Greenbrier, Arkansas. We treat your new gear like it's going into one of our own guitars. Every millimeter of wire is cut precisely, every solder joint is perfectly smooth and symmetrical, and every bend is purposeful and direct. We hold everything to a tremendous level of quality because we know the smallest details matter and we take great pride in our work.
