Description

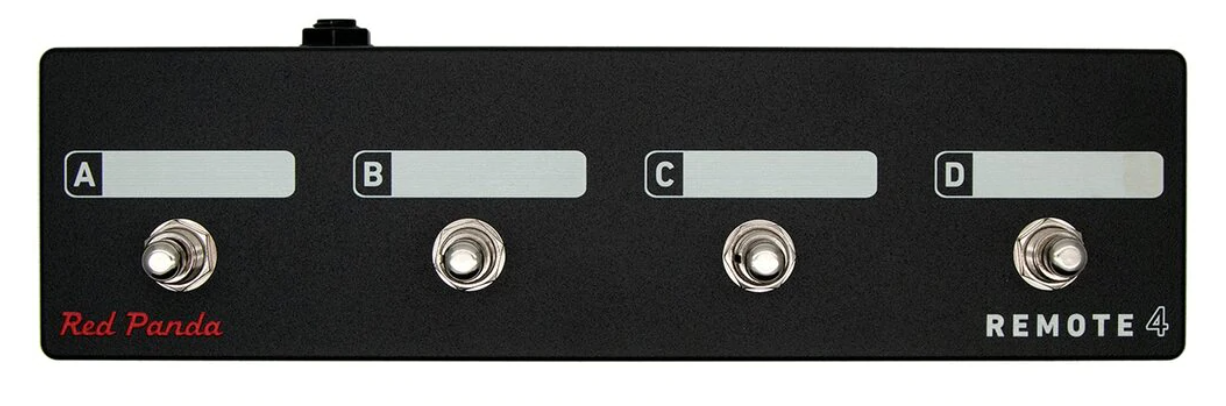

Remote switch with 4 modes to access presets and pedal functions. Scribble strips above each switch can be labeled with a Sharpie and erased using isopropyl alcohol.
Connects to our pedals via a 1/4" TRS cable (included). The Remote 4 does not require power.
Size: 10" x 2.75" x 2.25" high
Context Remote switch modes
Mode | Switch | Function |
1 | A | Preset 1 (hold to save) |
B | Preset 2 (hold to save) | |
C | Preset 3 (hold to save) | |
D | Preset 4 (hold to save) | |
2 | A | Preset footswitch |
B | Right footswitch | |
C | Reverb hold (latching) | |
D | Tap tempo | |
3 | A | Dry kill (momentary) |
B | Delay kill (momentary) | |
C | Reverb sustain (momentary) | |
D | Reverb damping (momentary) |
Particle Remote switch modes
Mode | Switch | Function |
1 | A | Preset 1 (hold to save) |
B | Preset 2 (hold to save) | |
C | Preset 3 (hold to save) | |
D | Preset 4 (hold to save) | |
2 | A | Left footswitch |
B | Right footswitch | |
C | Preset down | |
D | Preset up |
Tensor Remote switch modes
Mode | Switch | Function |
1 | A | Preset 1 (hold to save) |
B | Preset 2 (hold to save) | |
C | Preset 3 (hold to save) | |
D | Preset 4 (hold to save) | |
2 | A | Left footswitch |
B | Right footswitch | |
C | Preset 1 (hold to save) | |
D | Preset 2 (hold to save) | |
3 | A | Record / Overdub |
B | Play / Stop | |
C | Play Once | |
D | Toggle TIME & PITCH (tap) Toggle SPEED (double tap) | |
4 | A | Toggle SPEED knob |
B | Toggle TIME knob | |
C | Toggle PITCH knob | |
D | Toggle RAND knob |
Tensor Loop Sampler (Remote Mode 3)
Mode 3 is designed to use the Tensor as a loop sampler with live loop manipulation. Switches A-C control loop record, overdub, play, and retrigger functions. Switch 4 toggles between the current knob settings and the default (normal playback settings). For example, you can set SPEED to reverse and PITCH to -1 octave for instant access to reverse and half-speed effects. See the user's manual for complete details.
Configuring the Remote Switch (all pedals):
-
Start with the pedal powered on and nothing plugged into the CTRL port.
-
Hold the right footswitch while plugging in the remote switch. The right LED will blink yellow 3 times
to indicate it is in CTRL configuration mode. You can release the right footswitch and begin configu-
ration immediately.
-
Press one of the buttons on the remote switch to select a mode.
-
Hold the right footswitch for 2 seconds to save the configuration. The right LED will blink green to
indicate that the configuration has been saved.
