Description
INFINITE VOYAGE
Discovery System

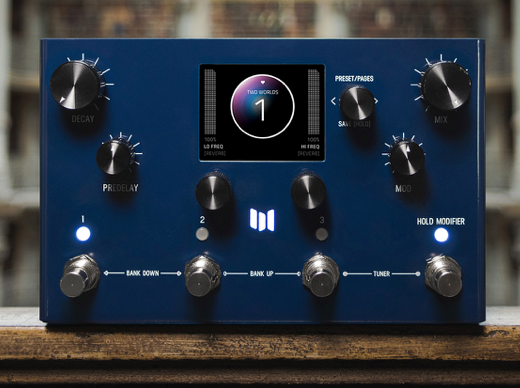

MercuryX takes the heart and soul of Mercury7 and expands it far beyond sci-fi into the highest quality and most flexible studio reverb ever created in a pedal format. All of our passion for pro audio has made it into both the algorithms and hardware performance of this pedal.
A NEW AWAKENING
8 Custom Meris Reverbs
MercuryX combines 8 custom Meris reverb algorithms and incorporates those into a modular system UI/architecture that we first introduced with the award winning LVX pedal. Ultraplate and Cathedra are from Mercury7 and are inspired by the moody sci-fi reverbs featured in Blade Runner. The 78 Room, Plate and Hall structures are inspired by the venerable sounds of a studio classic. Spring, Prism, and Gravity are brand new structures unique to MercuryX.
Features:
- Modular Reverb System architecture
- 8 Custom Meris Reverbs: Ultraplate, Cathedra, 78 Room, 78 Plate, 78 Hall, Spring, Prism and Gravity
- Expanded 2.54 secs of Stereo Predelay with modular Feedback Routing Location
- Advanced ARM Processor
- Configurable Reverb Structures, Types, and Processing Elements for the ultimate customization in reverb processing
- Intuitive Color Screen based User Interface
- Expressive Hold Modifier Switch for on the fly control
- 99 Preset Locations in 33 Banks
- Favorite Preset Bank for instant access to your 3 favorite presets
- Instant Access Tuner with configurable Reference and Output mode
- Deep Modifier Section lets you route control signals to processing parameters
- New Independent Stereo Freeze alongside reverb
- Gate Envelope Controls for every reverb type
- All New Processing Elements including 79 Chorus, Vibrato, Vowel Mod, Tremolo, Hazy Lo-Fi and more
- Selectable Note Divisions for each side of the stereo Predelay
- Digitally controlled Analog mix bus
- Stereo input and output with separate jacks for each
- Switchable input/output headroom level for Instrument or Synthesizer / Line levels
- MIDI In and Out over standard MIDI Din Jacks
- Assignable Expression Pedal control for multiple parameters simultaneously
- Dedicated Expression Pedal Jack
- MIDI implementation for Continuous Control Parameters
- MIDI Preset Send and Receive
- MIDI beat clock synchronization
- Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
- Premium Analog Devices JFET input section
- Dimmable screen and logo light
- Color – Deep blue glossy coat
- Designed and built in California, U.S.A.
SPECS:
- Conversion 24 bit A/D and D/A
- DSP 32 bit floating point
- Sample Rate 48000 Hz
- Input Impedance 1 Meg Ohm
- SNR 115 dB Typical
- Frequency Response 20Hz-20kHz
- Max Input Level +9 dBu (instrument level setting)
+12.5 dBu (line/synth level setting) - Power 9V DC center-negative, 300mA, 2.1mm jack
- Bypass Selectable True Bypass (Relay) or Analog Buffered Bypass
- Dimensions 7.25” wide, 4.5” long, 2” tall. (Same depth and height as all other pedals.)
- Weight 24 ounces
