Description

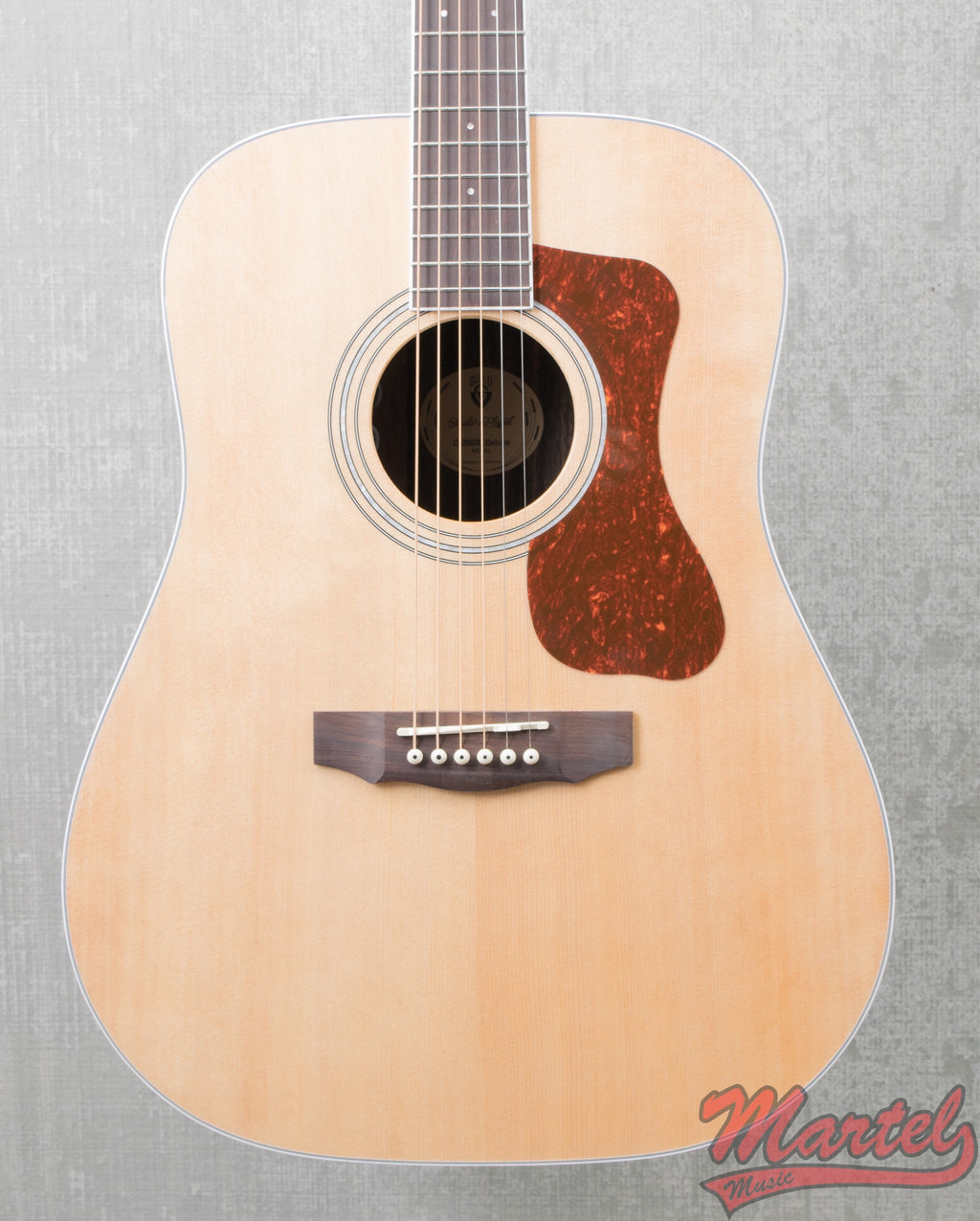

D-260E DELUXE
series: westerly collection
Add a little something extra to your acoustic with the D-260E Deluxe! This dreadnought guitar features a solid spruce top with a stunning arched striped ebony back and striped ebony sides. This unique tonewood gives the D-260E a clear, powerful voice with a pronounced bass response while a gloss finish highlights its unique striping pattern. Premium appointments include a mother-of-pearl rosette, Guild Peak headstock logo, pau ferro fingerboard and bridge, and Fishman Sonitone pickup with volume and tone controls.
specifications
body:
| Body Top | Solid Sitka Spruce |
| Body Back | Arched Striped Ebony |
| Body Sides | Striped Ebony |
| Body Shape | Dreadnought |
| Bracing | Scalloped X |
| Rosette | Black / White / Black outer – Black / MOP / Black center – Black / White / Black inner |
| Finish | Gloss Polyurethane |
| Body Depth Upper Bout | 4″ (101mm) |
| Body Depth Lower Bout | 4 3/4″ (119mm) |
| Body Length | 20 1/2″ (521mm) |
| Body Width Lower Bout | 15 3/4″ (400mm) |
| Body Width Upper Bout | 11 1/2″ (292mm) |
| Overall Guitar Length | 41 1/2″ (1055mm) |
| Body Binding | White ABS |
| Top Purfling | Black / White / Black / White ABS |
neck:
| Neck Material | Mahogany |
| Neck Shape | C Shape |
| Scale Length | 25 1/2″ (648mm) |
| Nut Width | 1 11/16″ (43mm) |
| Nut Material | NuBone |
| Fingerboard Material | Pau Ferro |
| Fingerboard Radius | 16″ (406mm) |
| Fingerboard Inlays | 5mm mother-of-pearl dots |
| # of Frets | 20 |
| Tuning Machines | Guild Tuning Machine GBB2 Butterbean 18:1 Nickel |
| Hardware Finish/Plating | Chrome |
| Truss Rod | Dual Action |
| Truss Rod Wrench | 4mm Allen Key |
| Neck Finish | Satin Varnish |
features:
| Bridge | Pau Ferro |
| Bridge String Spacing | 2 1/4″ (57mm) |
| Saddle | NuBone |
| Bridge Pins | Ivory Colored Plastic with Black Dot |
| Strings | D’Addario EXP16 – Coated Phosphor Bronze Light (.012 – .053) |
| Case or Gig Bag | NA |
| Strap Buttons | Guild Strap Button Rounded V1 NKL (Set of 2) |
| Electronics | Guild/Fishman AP1 with Sonicore pickup, Volume and Tone controls w/combination battery box/output jack |
| Item # | 383-0704-921 |
