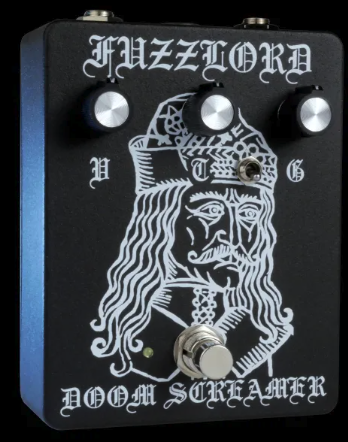

DOOM SCREAMER OVERDRIVE

Description

Modern Overdrive

The Doom Screamer is a powerful overdrive to push your amplifier and other pedals while tightening up your sound. This versatile overdrive is a modern take on the classic 808 circuit featuring a wider tonal range, finely tuned gain range, extended headroom range, and voicing that works well for guitar or bass. It works great as a clean boost to make your amp and other pedals more articulate, present, and driven. You can also use it as a baseline gain/drive tone for your clean amplifier giving a distinct voicing that really sits well in a mix for guitar or bass.

The Doom Screamer features a modern high fidelity low noise JFET op-amp and is designed to retain clarity in the bass frequencies while giving a boost in the mid range to help your instrument stand out in a full band mix.

Controls

V: Output level

T: Counterclockwise for more bass, clockwise for more treble

G: Amount of drive, from clean to overdriven

Toggle: Up to engage asymmetrical diode clipping, down for symmetric diode clipping (stock)

Specifications

Power: Use only a 9v center negative 2.1mm power supply. We recommend using an isolated power supply to avoid noise issues.

Dimensions: Length: 120 x 94 x 38 mm

Switching: True bypass soft switching

Current Draw: 48mA
