The Tall Bird features DC filaments for a noise floor second to none, and is just as at home in the studio patched into a console as it is sitting on an amp in a crowded venue. The Tall Bird especially excels at percussive guitar playing, filling in the gaps of notes with a haunting swell.

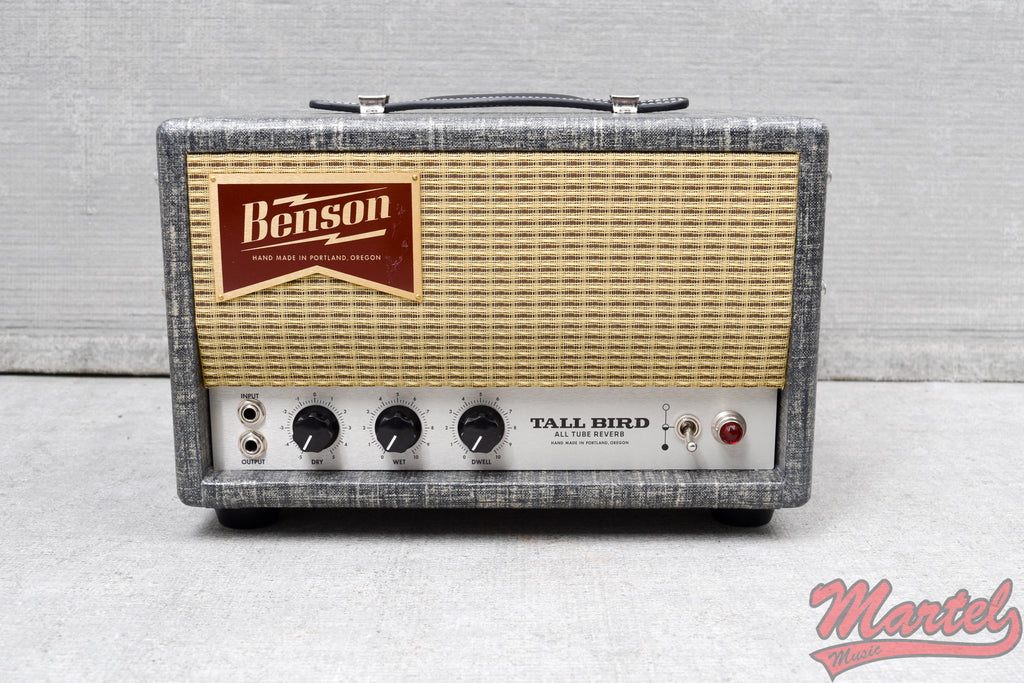

Part of the unique design is that, rather than a single mix knob, there are dedicated dry and wet volume knobs. With the dry knob at 12 oclock (5 on the dial), the dry signal is at unity gain, but if dialed higher you can use it to push an amplifier! Or you can turn it all the way down and use the Tall Bird all wet on a mix buss, or send it to another amp for weird spatial effects.
The dwell control controls how hard the reverb tank is hit with signal; turned up to a certain point it can overdrive the reverb tank for euphonic, cavernous reverb, or set halfway it can do a polite clean reverb that can still completely overwhelm the dry signal if you want it to with a simple twist of the wet knob.
Another unique feature of the Tall Bird that is begging to be used creatively is that when the footswitch is clicked off, the tail of the reverb still rings out, a benefit of the uncommonly quiet reverb return circuitry.
Tubes: 2x12AX7s 1x12AU7
3 spring 9" Jensen Mod reverb tank. Yes, it is a short tank. This particular short tank sounds better for guitar with this particular circuit. Tip for recording engineers: if using on vocals or drums, run the RCA cables out to a Jensen Mod 9EB2C1B...sound like a plate!
Head 13.5”W 8”H 8.25”D 13 lbs
Point to point construction on terminal strips - no circuit, eyelet or turret board
>> the feedback looper of your dreams vv ^^ sǝɹɐɯʇɥƃᴉu ɹnoʎ ɟo ɹǝdool ʞɔɐqpǝǝɟ ǝɥʇ <<
Death by Audio was conceived in 2002 with the most insane pedal of all time: the Total Sonic Annihilation. Here was a pedal that literally transformed all of your pedals into different effects by force feeding them back into themselves. Fast forward to present day - through painstaking redesign and improvements, the original circuit has been reborn as the Total Sonic Annihilation 2. Totally new functionality and additional controls create even more wildly warped alien space sounds than the original. Go get some!
The TSA2, like its predecessor, works on a simple premise: what if effect pedals were patched back into themselves? What does it sound like for a filter to be multiplied by infinity? Or if your modulator was modulating its own modulations? The TSA2 creates a controllable feedback loop, causing your pedals to cycle back on themselves, feeding the output back into the input as much or as little as you want. Experience true sonic exploration: every unique pedal array will produce a vast world of textures and possibilities.
FEEDBACK: The big knob. This controls the amount the SEND (external effect input) is forced back into the RECEIVE (external effect output). This creates feedback within the circuit to create new unbridled and experimental effects and results. The more this knob is turned up the more intense and explosive the effects are. The ACTIVE BOOST is also in this loop and (if engaged) will be forced back into itself to create its own wild and interesting sounds if nothing is plugged into the loop.
ON: This toggle switch when in the ON position turns on the ACTIVE BOOST circuit.
PHASE: Flips the phase of the effects loop, only when the ACTIVE BOOST is on.
GAIN:Controls the amount of gain of the ACTIVE BOOST circuit.
LIMIT:Limits the output volume of the entire pedal only when the ACTIVE BOOST is engaged.
STOMP SWITCH: Bypasses the effect.
NOTE: When the TSA2 is turned off the TSA2 is bypassed but every pedal in the loop is still part of your signal chain. Any effect(s) in the loop works as usual.
THE NEW FEATURES OF VERSION 2
If you've used a feedback loop pedal before like the 1st edition of the Total Sonic Annihilation then you know the vast world of insane and wild sounds that you can get. With this new updated version of the original the ACTIVE BOOST really makes this usable for so many more applications where the original fell short. For example if the effect in the feedback loop is out of phase with itself, the loop would turn the pedal just into a volume or blend pedal and not be that interesting. With the TSA2, just flip the PHASE switch and all of a sudden those once dormant possibilities are awakened! The BOOST also has a boatload of gain to awaken even the faintest effect into an unearthly behemoth and a LIMITER to tame the most unruly beast into a purring kitten. Experiment with as many different pedals in the FEEDBACK loop for unique and incredible results!
Dimensions: 4.7" x 2.7" x 2.5" (includes knobs and jacks)
Weight: 11.1 oz.
Power: 9V (runs on standard 2.1mm negative center 9V adapter or included 9V battery).
This handy reference for beginning students clearly shows the note names and the note positions on the treble and bass clefs. The front of the guide fits behind all 88 keys of any piano, and the back of the guide is a practice keyboard.
